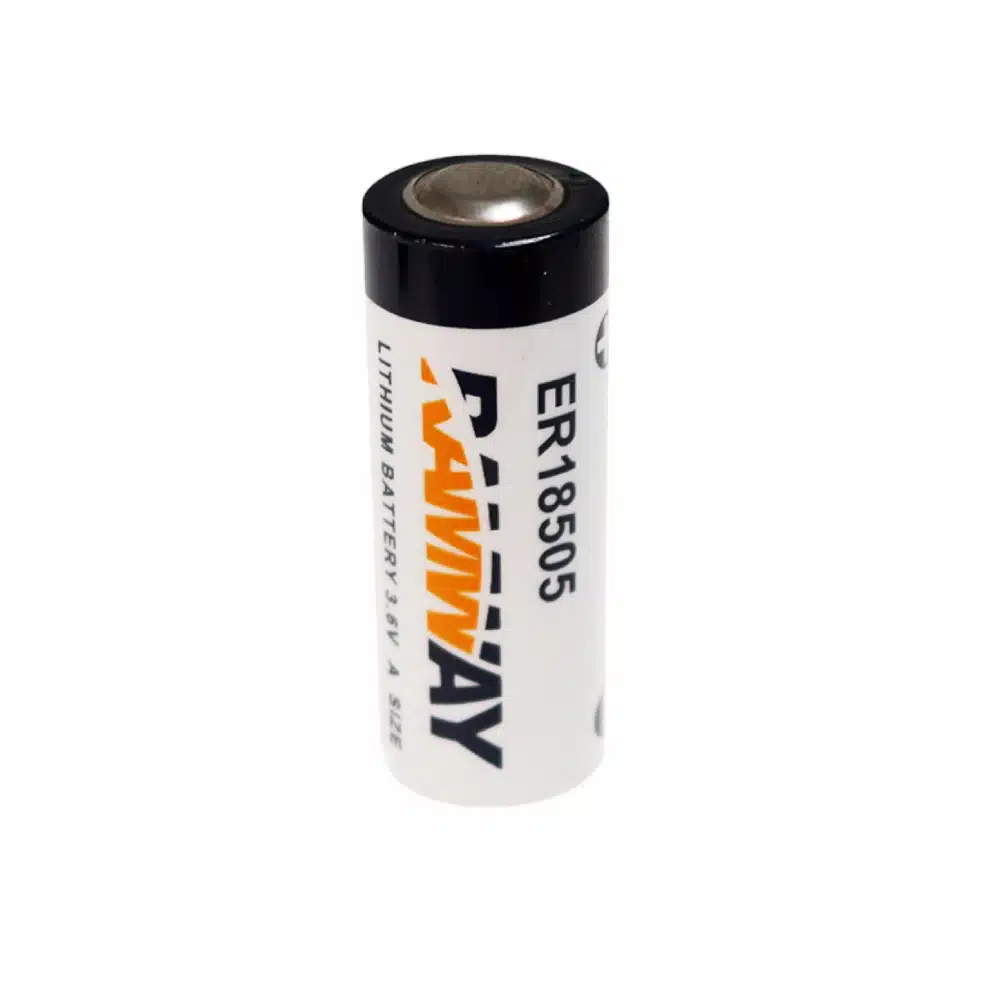

Ramway A 3.6V ER18505 4000mAh Lithium Battery

Ramway A 3.6V ER18505 4000mAh Lithium Battery units are the ultimate power solution if you require dependable, long-term energy for critical electronic devices across Saudi Arabia. Designed specifically for high-stakes industrial and commercial applications, this premium spiral-type power cell utilizes advanced technology to deliver a stable, continuous 3.6V output alongside an enormous 4000mAh (4.0Ah) nominal capacity. Whether you are outfitting automatic meter reading systems or deploying remote military electronics in the harsh KSA climate, this A-size battery ensures your equipment remains operational without frequent, costly replacements.

When extreme durability is non-negotiable, this specialized ER18505 4000mAh lithium thionyl chloride battery stands out from standard commercial cells. It is engineered with a rugged stainless steel container and hermetic glass-to-metal sealing, strictly protecting the internal non-flammable electrolyte from harsh external elements. This high-grade construction boasts an incredibly low self-discharge rate of less than 1% per year (at 25℃), guaranteeing that your standby devices, such as memory backups and tollgate systems, are always ready to perform when you need them most.

We understand the specific demands of Middle Eastern industrial sectors, which is why we offer this highly sought-after Ramway ER18505 lithium battery supply directly to your facility. Fully UL, CE, and SGS recognized, and manufactured in an ISO9001 approved facility, this lithium cell provides up to 130mA of continuous current and easily handles pulse currents up to 180mA. Keep your alarms, security devices, and professional electronics running flawlessly in extreme temperatures ranging from -60℃ to +85℃.

Features:

Explore the advanced manufacturing features that make this 4.0Ah power cell ideal for demanding industrial environments.

1. Stable Voltage: Delivers a high and incredibly stable operating voltage of 3.6V throughout the vast majority of its lifespan.
2. Maximum Capacity: Features an upgraded nominal capacity of 4000mAh (4.0Ah) for extended operational life in remote devices.
3. Ultra-Low Discharge: Boasts a remarkably low self-discharge rate (less than 1% after 1-year storage at 25℃).
4. Rugged Construction: Housed in a durable stainless steel container with hermetic sealing to prevent leaks and environmental damage.
5. Safety Certified: Built with a non-flammable electrolyte and is fully UL, CE, and SGS recognized (ISO9001 approved).
6. Extreme Temperature Tolerance: Operates flawlessly in severe conditions ranging from -60℃ to +85℃.

Technical Specifications:

Review the specific electrical characteristics and temperature limits of this high-capacity spiral-type cell.

1. Manufacturer: Ramway
2. Model: ER18505 (A Size)
3. Nominal Capacity: 4.0Ah / 4000mAh (At 2.0mA, +25℃, 2.0V cut off)
4. Rated Voltage: 3.6V
5. Max Recommended Continuous Current: 130mA
6. Max Pulse Current Capability: 180mA
7. Operating Temperature Range: -60℃ to +85℃
8. Storage Temperature: Max. 30℃ (recommended)
9. Typical Weight: Approximately 32g

Data Table:

A quick-reference guide to the essential electrical specifications of this 4000mAh ER18505 model.

Applications:

Discover the strict industrial and commercial environments where this power cell excels.

1. Utility Metering: The standard choice for automatic meter reading (AMR) systems tracking water, gas, and electricity in KSA.
2. Security Systems: Provides reliable, long-term power for wireless alarms and high-stakes security devices.
3. Automotive & Tollgates: Essential for automotive electronics and automated tollgate transponder systems.
4. Professional Electronics: Used extensively in memory back-up systems and specialized military electronics requiring hermetic sealing.

How To Use:

Follow these standard operational steps for safe and effective battery installation.

1. Device Preparation: Ensure the electronic device is completely powered off before attempting battery installation.
2. Polarity Verification: Check the internal battery compartment to clearly identify the correct positive (+) and negative (-) terminals.
3. Insert Battery: Carefully insert the battery, aligning the printed (+) symbol on the casing with the corresponding device contact.
4. Secure Compartment: Close the battery housing securely to prevent moisture or dust from entering the hermetic seal area.
5. Power On: Turn the device on and verify that the 3.6V power supply is registering correctly on your equipment’s diagnostic screen.

Warning:

Pay attention to these critical safety alerts to prevent fire, explosion, or severe chemical burns.

1. Do Not Recharge or Short-Circuit: This is a primary lithium cell; attempting to recharge, over-discharge, or short-circuit it presents a severe fire and explosion hazard.
2. Heat Restrictions: Never expose the battery to extreme heat above 100℃, and never attempt to dissect or incinerate it.
3. No Direct Soldering: Do not weld directly on the surface of the battery. Only use a battery pre-equipped with a guide lug or lead.
4. Do Not Mix Batteries: Do not mix old and new batteries, batteries of different models, or batteries from different manufacturers together in the same device.

Precautions:

Keep these handling and maintenance guidelines in mind for long-term operational safety and battery life.

1. Storage Conditions: Store unused batteries in a cool, dry, and well-ventilated area, preferably below 30℃ to maintain the <1% discharge rate.
2. Limit Operations: Operating the battery closely to its limit temperatures (-60℃ or +85℃) may lead to reduced capacity and a low voltage plateau reading.
3. Proper Disposal: When the battery reaches its end voltage, remove it from the instrument promptly and bury it deep underground or dispose of it strictly according to local hazardous waste regulations.
4. Short Circuit Prevention: Never carry loose batteries in a pocket or toolbox with metal objects like coins or keys that could bridge the terminals.

Frequently Asked Questions (FAQs)

1. What is the voltage and capacity of the Ramway A 3.6V ER18505 4000mAh Lithium Battery?
   This specific battery delivers a highly stable rated voltage of 3.6V and a massive nominal capacity of 4000mAh (4.0Ah).
2. Can I recharge this ER18505 4000mAh lithium thionyl chloride battery?
   No. This is a primary (non-rechargeable) battery. Attempting to charge it is extremely dangerous and can cause an explosion, combustion, or internal acid leakage.
3. Is it safe to solder directly to this A-size lithium battery?
   No, you must never weld directly on the surface of the cell casing. If soldering is required, use a battery pre-equipped with a guide lug or lead.
4. What is the maximum operating temperature for this battery in Saudi Arabia?
   It is designed to operate safely in extreme environmental conditions, handling temperatures from -60℃ up to a maximum of +85℃.
5. Can I use this Ramway ER18505 lithium battery alongside a different brand in my device?
   No, for safety and performance reasons, you should never mix old and new batteries, different models, or batteries from different manufacturers together.
