Ramway CC 3.6V ER261020 17000mAh Lithium Battery

Ramway CC 3.6V ER261020 17000mAh Lithium Battery units are the ultimate high-capacity power solution if you require dependable, long-term energy for critical electronic devices across Saudi Arabia. Designed specifically for high-stakes industrial and commercial applications, this premium Double C (CC) size power cell utilizes advanced Lithium Thionyl Chloride (LiSOCl2) technology to deliver a stable, continuous 3.6V output alongside a massive 17000mAh (17Ah) nominal capacity. Whether you are outfitting demanding automatic meter reading systems, deploying remote military electronics, or powering underground drilling equipment in the harsh KSA climate, this battery ensures your equipment remains operational for years without frequent, costly replacements.

When extreme durability and long lifespan are non-negotiable, this specialized ER261020 17000mAh lithium thionyl chloride battery stands out from standard commercial cells. It is engineered with a rugged stainless steel container and hermetic glass-to-metal sealing, strictly protecting the internal non-flammable electrolyte from harsh external elements. This high-grade construction boasts an incredibly low self-discharge rate of less than 1% per year (at 25℃), guaranteeing that your standby devices, such as memory backups and automated tollgate systems, are always ready to perform when you need them most.

We understand the specific high-drain demands of Middle Eastern industrial sectors, which is why we offer this highly sought-after Ramway ER261020 lithium battery supply directly to your facility. Fully UL, CE, and SGS recognized, and manufactured in an ISO9001 approved facility, this spiral-type lithium cell provides up to 200mA of continuous current and easily handles pulse currents up to 400mA. Keep your heavy-duty alarms, security devices, and professional electronics running flawlessly in extreme temperatures ranging from -60℃ to +85℃.

Features:

Explore the advanced manufacturing features that make this 17Ah Double C cell ideal for demanding industrial environments.

1. Stable Voltage: Delivers a high and incredibly stable operating voltage of 3.6V throughout the vast majority of its lifespan.
2. Maximum Capacity: Features a massive nominal capacity of 17000mAh (17Ah) for extended operational life in remote, high-drain devices.
3. Ultra-Low Discharge: Boasts a remarkably low self-discharge rate (less than 1% after 1-year storage at 25℃).
4. Rugged Construction: Housed in a durable stainless steel container with hermetic sealing to prevent leaks and environmental damage.
5. Safety Certified: Built with a non-flammable electrolyte and is fully UL, CE, and SGS recognized (ISO9001 approved).
6. Extreme Temperature Tolerance: Operates flawlessly in severe conditions ranging from -60℃ to +85℃.

Technical Specifications:

Review the specific electrical characteristics and temperature limits of this high-capacity CC-size spiral-type cell.

1. Manufacturer: Ramway
2. Model: ER261020 (Double C / CC Size)
3. Nominal Capacity: 17Ah / 17000mAh (At 5.0mA, +25℃, 2.0V cut off)
4. Rated Voltage: 3.6V
5. Max Recommended Continuous Current: 200mA
6. Max Pulse Current Capability: 400mA
7. Operating Temperature Range: -60℃ to +85℃
8. Storage Temperature: Max. 30℃ (recommended)
9. Typical Weight: Approximately 100g

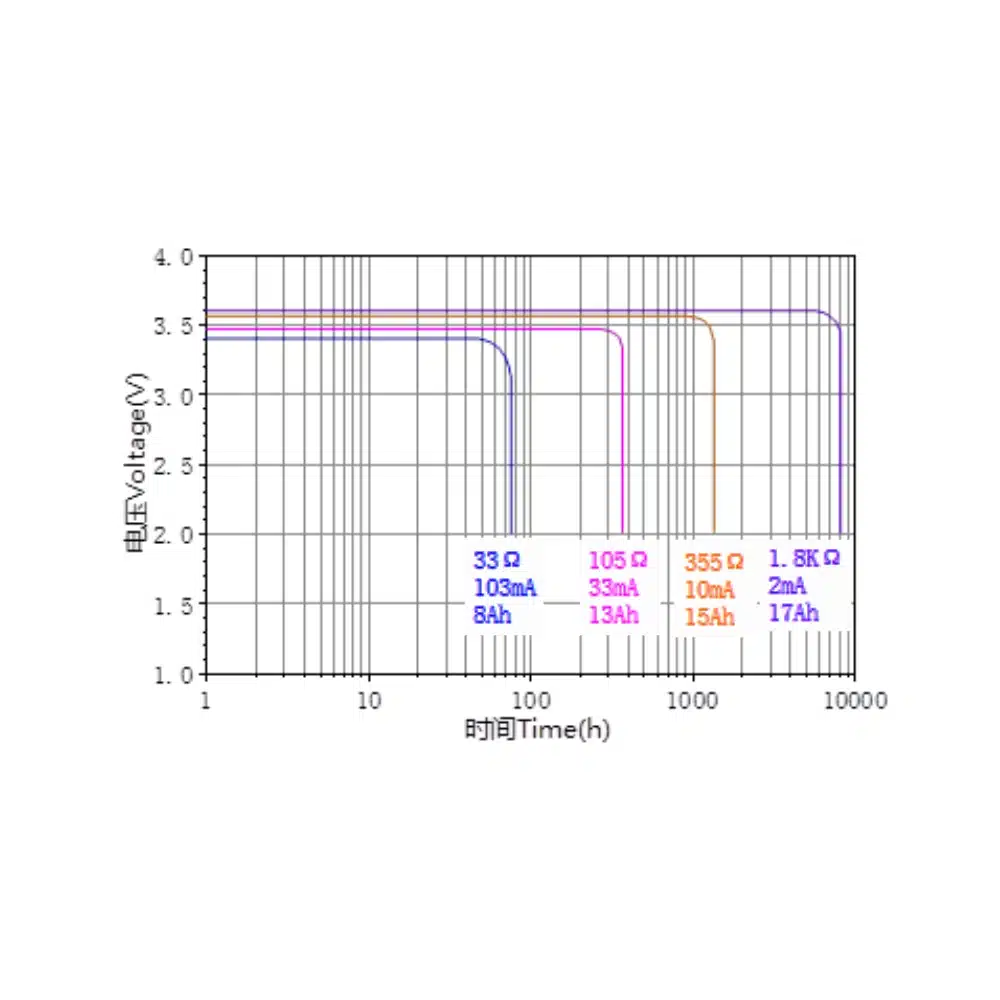

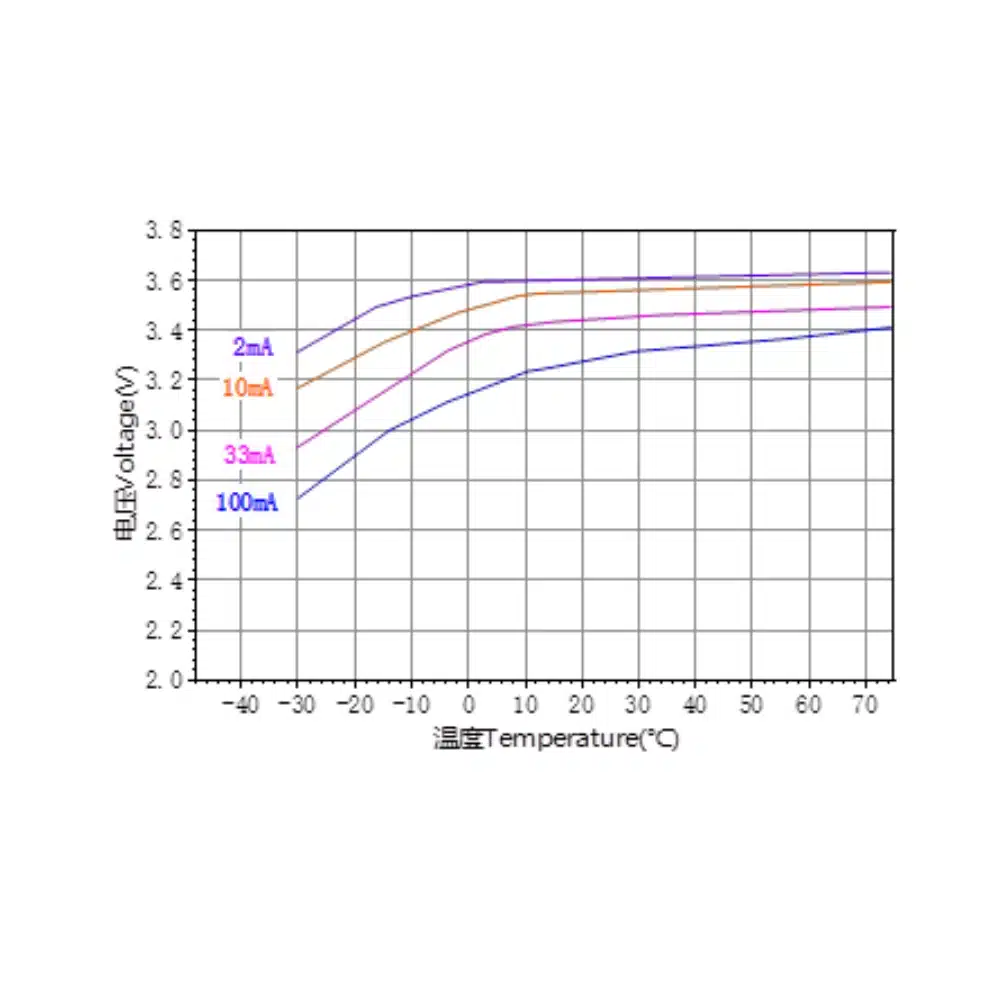

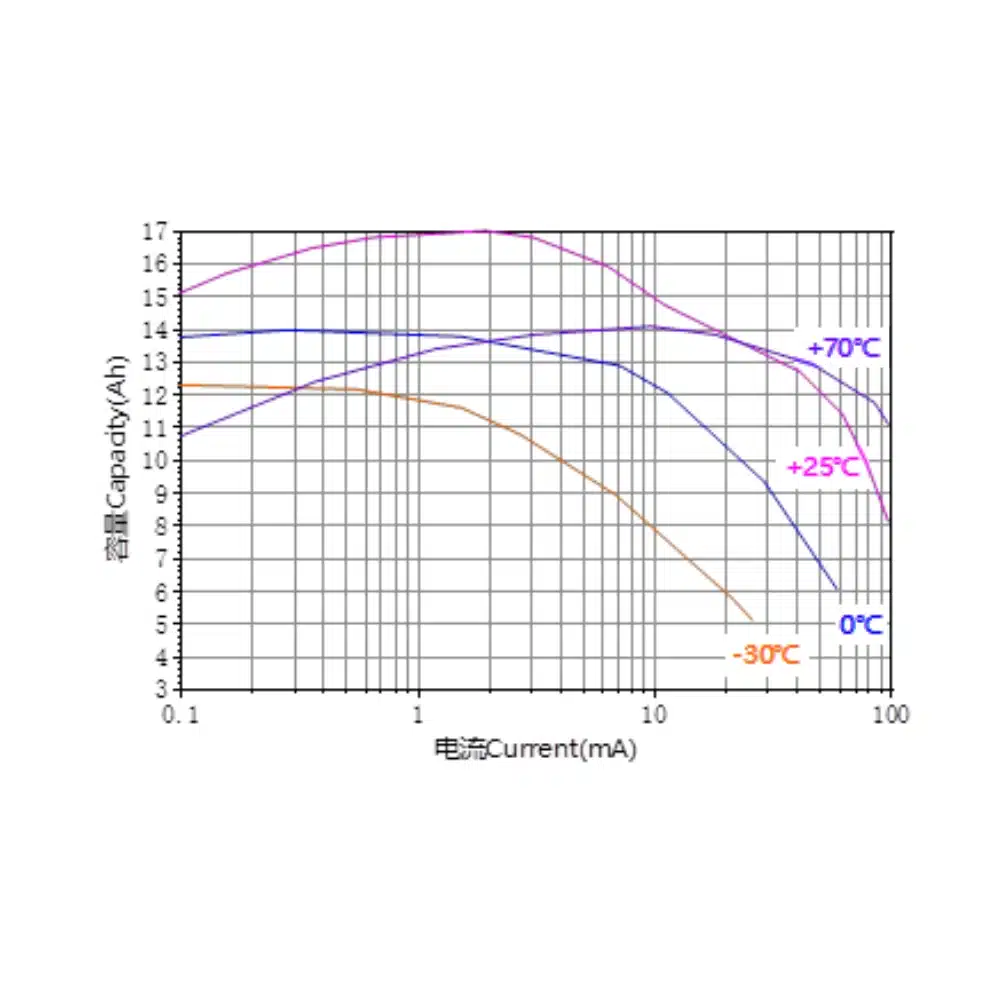

Data Table

A quick-reference guide to the essential electrical specifications of this 17000mAh ER261020 model.

Applications:

Discover the strict industrial and commercial environments where this high-capacity Double C power cell excels.

• Utility Metering: The standard choice for automatic meter reading (AMR) systems tracking water, gas, and electricity in KSA.
• Security Systems: Provides reliable, long-term power for wireless alarms and high-stakes security devices.
• Automotive & Tollgates: Essential for automotive electronics and automated tollgate transponder systems.
• Professional Electronics: Used extensively in memory back-up systems, underground drilling equipment, and specialized military electronics requiring hermetic sealing.

How To Use:

Follow these standard operational steps for safe and effective battery installation.

1. Device Preparation: Ensure the electronic device is completely powered off before attempting battery installation.
2. Polarity Verification: Check the internal battery compartment to clearly identify the correct positive (+) and negative (-) terminals.
3. Insert Battery: Carefully insert the battery, aligning the printed (+) symbol on the blue casing with the corresponding device contact.
4. Secure Compartment: Close the battery housing securely to prevent moisture or dust from entering the hermetic seal area.
5. Power On: Turn the device on and verify that the 3.6V power supply is registering correctly on your equipment’s diagnostic screen.

Warning:

Pay attention to these critical safety alerts to prevent fire, explosion, or severe chemical burns.

1. Do Not Recharge: This is a primary lithium cell; attempting to recharge it presents a severe fire and explosion hazard.
2. Heat Restrictions: Never expose the battery to extreme heat above 100℃, and never attempt to dissect or incinerate it.
3. No Direct Soldering: Do not weld directly on the surface of the battery. Only use a battery pre-equipped with a guide lug or lead.
4. Do Not Mix Batteries: Do not mix old and new batteries, batteries of different models, or batteries from different manufacturers together in the same device.

Precautions:

Keep these handling and maintenance guidelines in mind for long-term operational safety and battery life.

1. Storage Conditions: Store unused batteries in a cool, dry, and well-ventilated area, preferably below 30℃ to maintain the <1% discharge rate.
2. Limit Operations: Operating the battery closely to its limit temperatures (-60℃ or +85℃) may lead to reduced capacity and a low voltage plateau reading.
3. Proper Disposal: When the battery reaches its end voltage, remove it from the instrument promptly and dispose of it strictly according to local KSA hazardous waste regulations.
4. Short Circuit Prevention: Never carry loose batteries in a pocket or toolbox with metal objects like coins or keys that could bridge the terminals.

Frequently Asked Questions (FAQs):

1. What is the voltage and capacity of the Ramway CC 3.6V ER261020 17000mAh Lithium Battery?
   This specific Double C (CC) size battery delivers a highly stable rated voltage of 3.6V and a massive nominal capacity of 17000mAh (17Ah).
2. Can I recharge this ER261020 17000mAh lithium thionyl chloride battery?
   No. This is a primary (non-rechargeable) battery. Attempting to charge it is extremely dangerous and can cause an explosion, combustion, or internal acid leakage.
3. Is it safe to solder directly to this Ramway ER261020 lithium battery?
   No, you must never weld directly on the surface of the cell casing. If soldering is required, use a battery pre-equipped with a guide lug or lead.
4. What is the maximum operating temperature for this battery in Saudi Arabia?
   It is designed to operate safely in extreme environmental conditions, handling temperatures from -60℃ up to a maximum of +85℃.

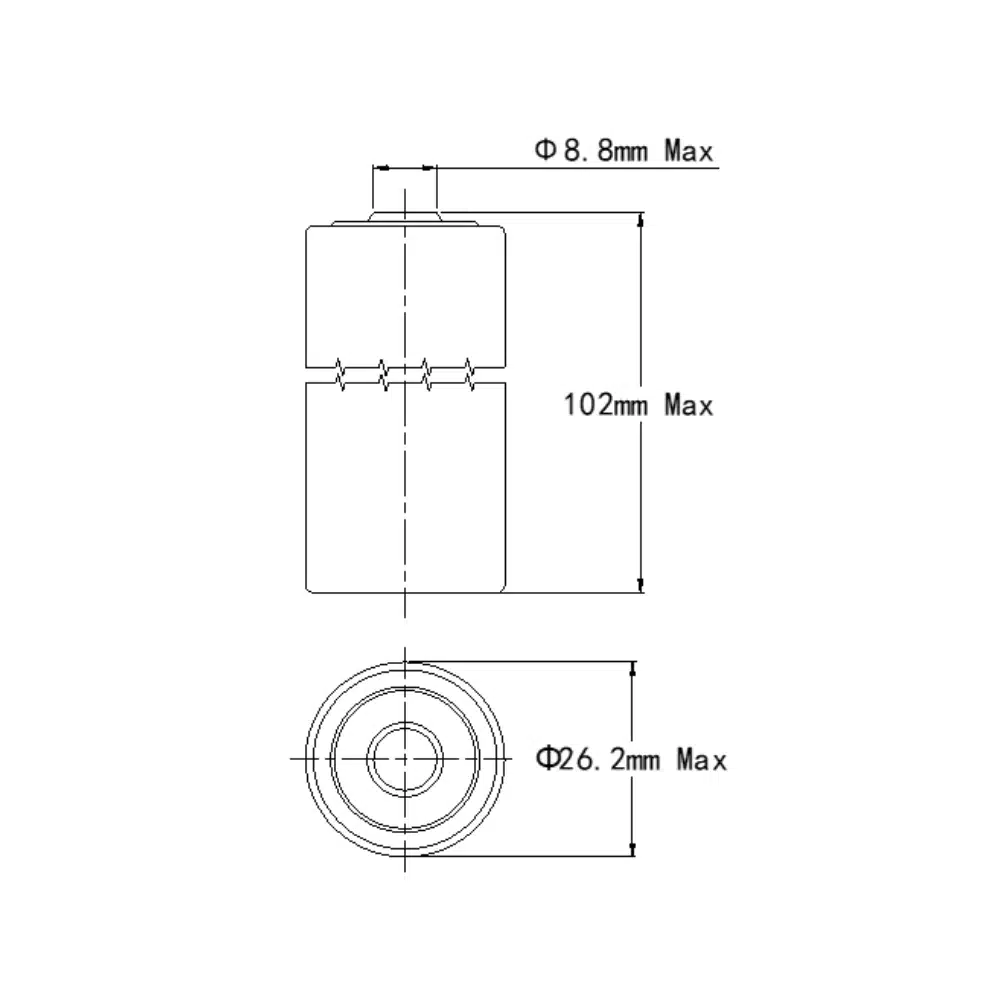

5. What is the physical size of the ER261020 battery?
   The ER261020 is a Double C (CC) size battery, which is approximately twice the length of a standard C-size battery, weighing about 100 grams.
