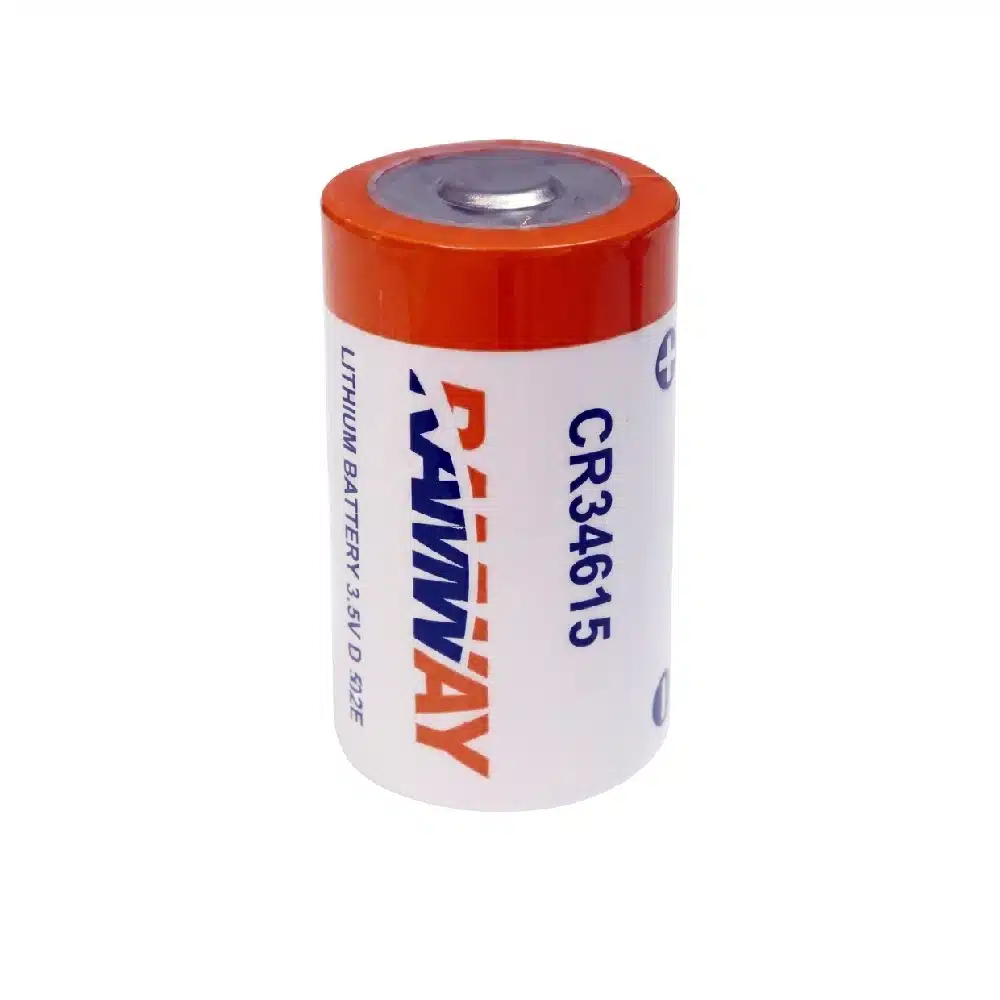

Ramway D 3V CR34615 12000mAh Lithium Battery

Ramway D 3V CR34615 Lithium Battery In Saudi Arabia

The Ramway D 3V CR34615 12000mAh Lithium Battery is an industrial-grade primary power cell engineered for long-term telemetry, municipal metering, and remote monitoring systems across Saudi Arabia. Manufactured in a robust D-size cylindrical form factor utilizing spiral-wound lithium manganese dioxide (Li-MnO2) chemistry, this cell provides a stable 3.0V nominal output coupled with a substantial 12000mAh energy capacity. Engineered to withstand challenging desert heat and demanding field installations, it delivers reliable high-pulse transmissions without suffering from severe passivation dropouts.

Key Performance Advantages

Engineered for mission-critical hardware requiring extended operational lifespans, the Ramway cr34615 battery incorporates several verified design characteristics:

1. Spiral-Wound Electrode Construction: Maximizes internal surface area to handle sustained continuous discharge currents up to 2000mA and dynamic telemetry pulses reaching 3000mA.
2. Stable 3.0V Operating Plateau: Keeps sensitive electronics functioning cleanly near rated voltage throughout the discharge lifecycle, preventing premature low-voltage cutoffs.
3. Minimal Self-Discharge Rate: Loses less than 2% of its rated capacity per year when stored at 25°C, ensuring high readiness for field replacement stock.
4. Hermetic Stainless Steel Housing: Enclosed in a heavy-duty stainless steel container with true hermetic glass-to-metal sealing to prevent electrolyte leakage and internal corrosion.
5. Extended Thermal Envelope: Operates safely in ambient temperatures ranging from -40°C to +85°C, making it suitable for unconditioned outdoor meter boxes and pipeline stations.
6. Certified Production Standards: Manufactured in an ISO9001 quality facility with CE and SGS product safety recognitions.

Technical Specifications

Verified mechanical and electrical parameters derived directly from official manufacturer technical documentation:

Discharge & Thermal Characteristics

Manufacturer laboratory curves demonstrate the operational profile of the Ramway cr34615 3v battery across diverse resistive loads and environmental conditions:

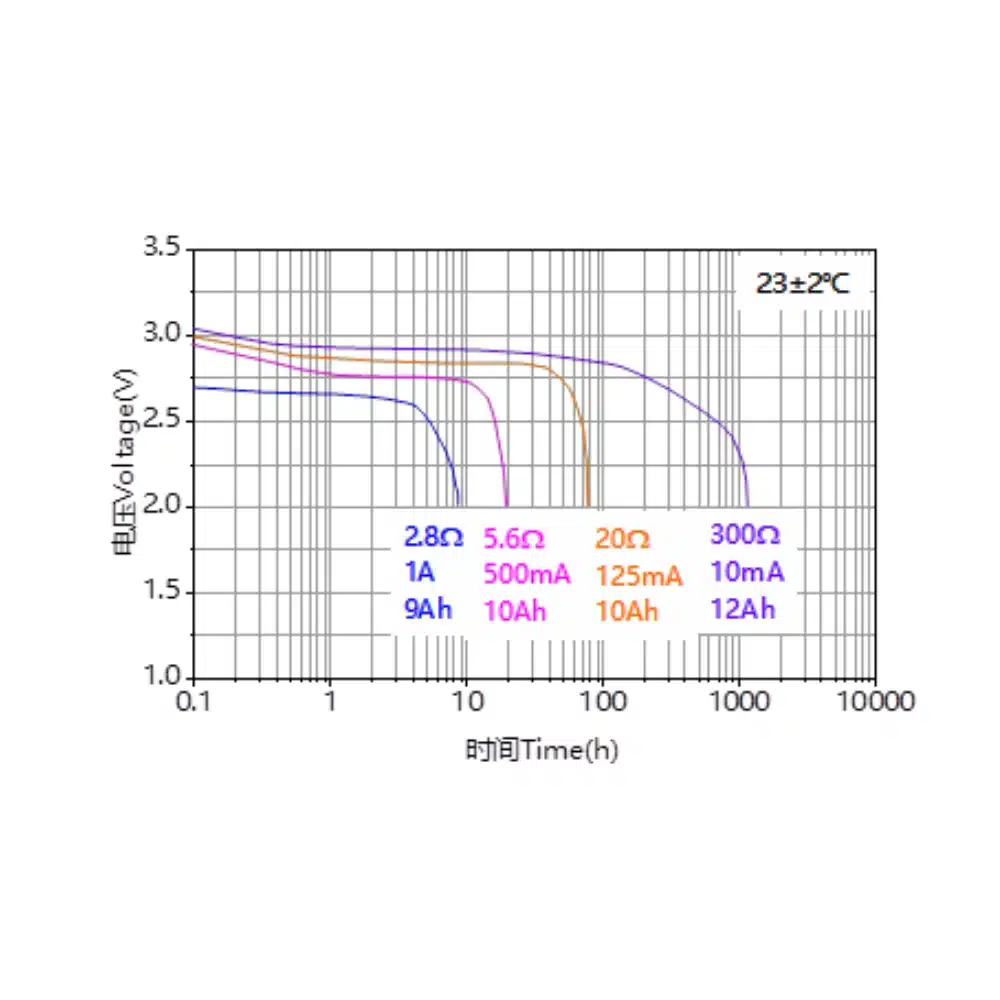

1. Variable Current Discharge: At 23°C, standard baseline loads of 300Ω (10mA) deliver the full rated 12Ah capacity, intermediate loads of 20Ω (125mA) and 5.6Ω (500mA) provide roughly 10Ah, and heavy 2.8Ω continuous loads (1A) sustain a stable plateau delivering 9Ah down to the 2.0V cutoff.

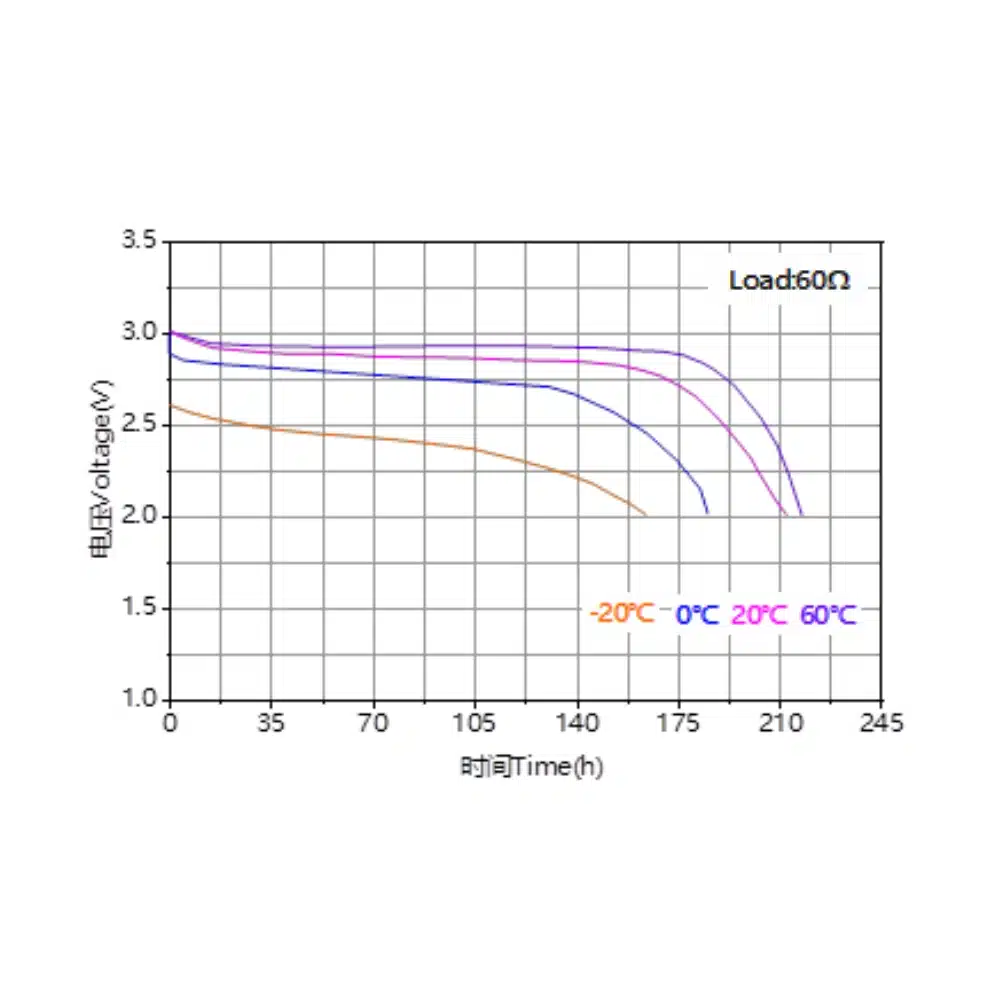

2. Thermal Voltage Durability: Under continuous 60Ω discharge, operating at elevated temperatures (20°C to 60°C) sustains a dependable working voltage near 2.8V over 175 to 215 hours, while sub-zero environments down to -20°C consistently maintain operational voltage above 2.0V for more than 150 hours.

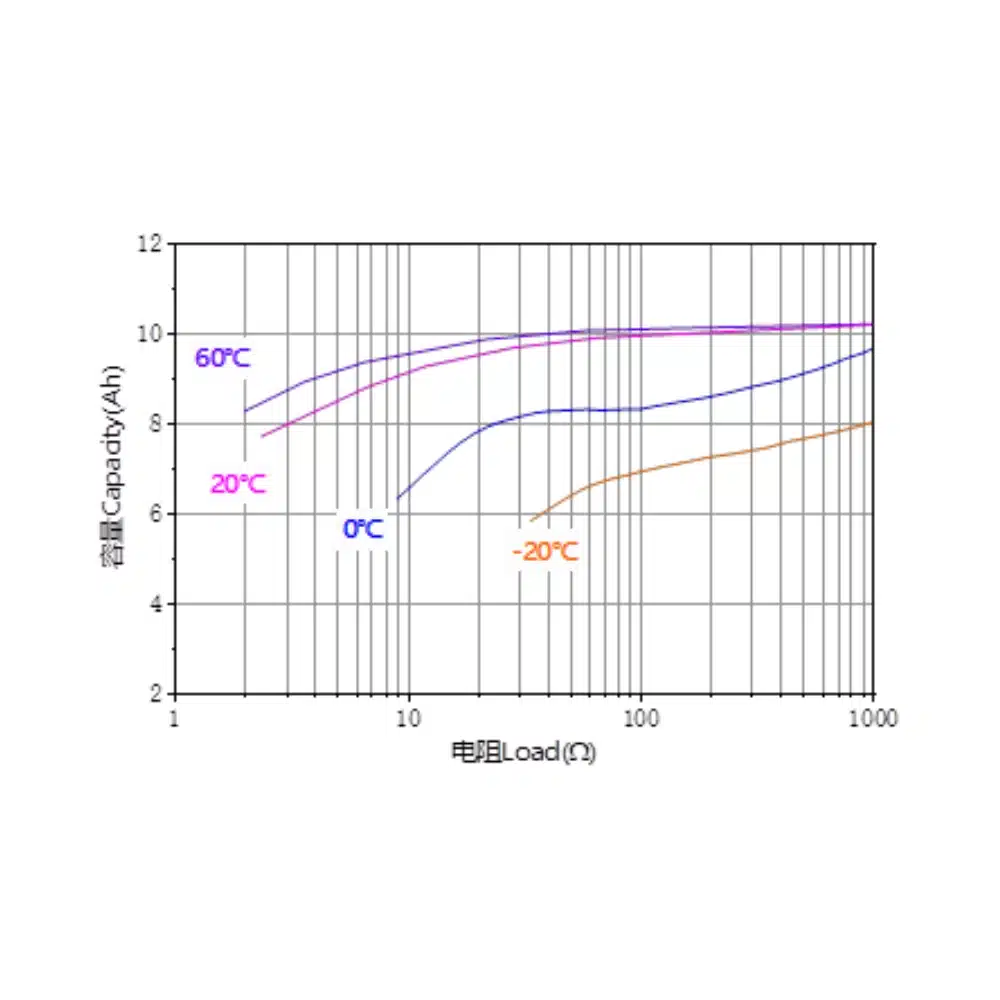

3. Capacity vs Load Performance: Across continuous resistive loads ranging from 2Ω to 1000Ω, capacity retention remains resilient, demonstrating reliable performance even when ambient operating temperatures shift between desert peaks and winter lows.

Applications Across Saudi Industrial Sectors

Combining high capacity with pulse durability, the d size lithium battery Ramway cell provides dependable energy across diverse municipal and commercial installations:

1. Automated Meter Reading (AMR) & AMI Infrastructure: Serves as the primary power cell for smart water flow meters, industrial gas meters, and district energy data collectors across Saudi utility networks.
2. Automated Toll Collection & Fleet Tracking: Powers roadside electronic toll transponders, heavy vehicle identification tags, and remote tracking beacons exposed to intense roadside heat.
3. Industrial Pipeline Telemetry & SCADA: Supplies autonomous power to pipeline cathodic protection data loggers, wellhead pressure monitors, and remote telemetry units (RTUs) throughout Jubail and Yanbu.
4. Commercial Security & Defense Electronics: Backs up commercial security alarm transceivers, emergency location beacons, memory backup (MBU) circuits, and specialized tactical communication field hardware.

How to Use / Install

Adhere to standard industrial procedures to ensure safe installation and maintain rated battery performance:

1. De-energize Equipment: Verify that the host electronic equipment is fully powered down before removing old cells or seating new batteries.

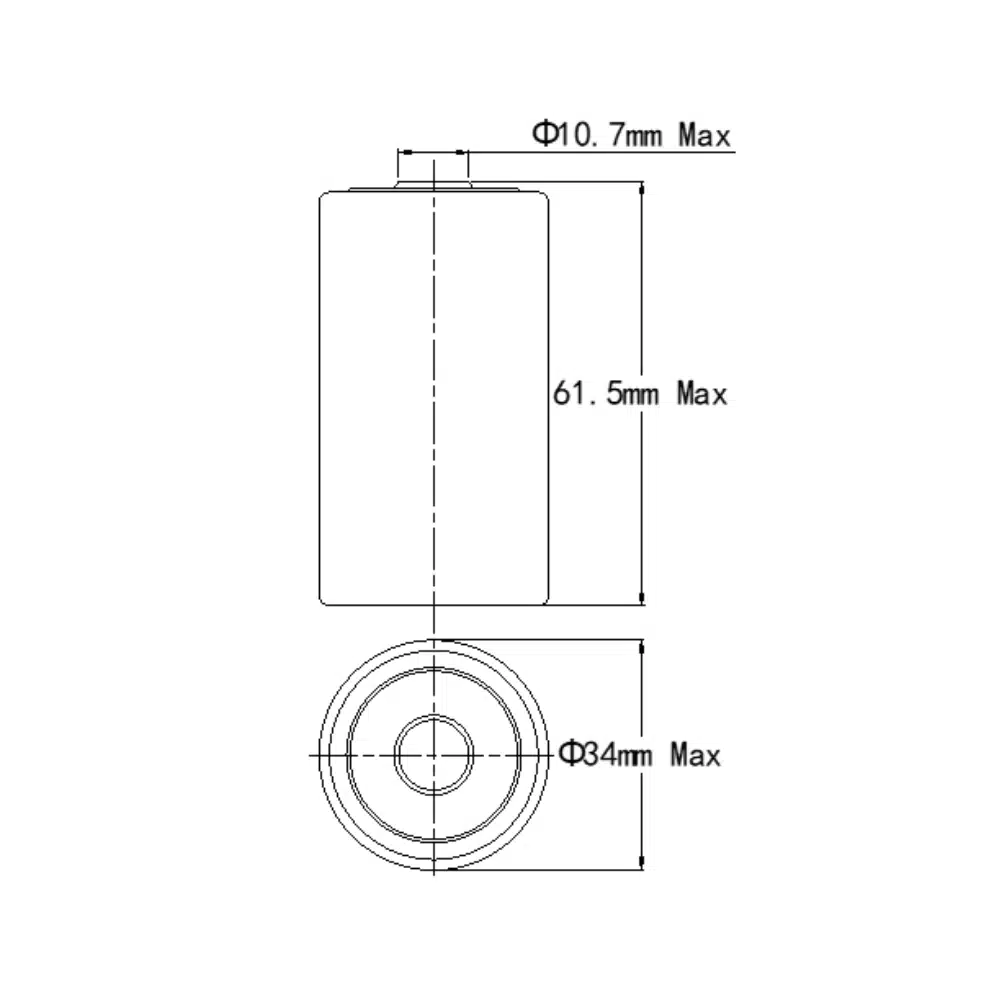

2. Verify Polarity & Terminal Cleanliness: Inspect the battery enclosure contacts, ensuring they are free from debris, and align the positive terminal (10.7mm raised top) and flat negative base correctly.
3. Position the Cell: Slide the Ramway CR34615 3V 12000mah unit gently into the cell carrier without utilizing sharp tools or excessive physical compression.
4. Secure Enclosure Gaskets: Fasten the compartment cover securely to preserve the unit’s IP environmental sealing against airborne desert dust and moisture.
5. Confirm System Potential: Power on the device and check diagnostic telemetry to confirm an initial operating voltage reading at or above 3.0V.

Precautions & Safety Protocols

Because the Ramway D size 3V lithium battery CR34615 contains high-energy lithium metal and active chemical components, observe these strict safety protocols:

1. Non-Rechargeable Chemistry: Never connect this primary cell to a charging circuit. Attempting to charge introduces severe hazards of internal gas buildup, cell rupture, or combustion.
2. Strict Thermal Limits: Do not incinerate or expose the cell to open flame or temperatures exceeding 100°C. Prolonged operation near the +85°C boundary may temporarily lower the available voltage plateau.
3. No Direct Canister Soldering: Never apply soldering irons directly to the stainless steel canister. Excessive localized heat damages the hermetic glass-to-metal seal; use factory-installed solder tabs or appropriate D-cell battery holders.
4. Mechanical Integrity: Do not crush, puncture, disassemble, drop, or deform the stainless steel housing. Compromising the container destroys the hermetic seal.
5. Short-Circuit Prevention: Never store or carry loose cells alongside metallic objects like keys, tools, or loose wiring that could bridge the positive and negative terminals.
6. Hazardous Waste Compliance: Depleted cells must be collected and processed in accordance with Saudi Arabian municipal environmental regulations and industrial waste disposal standards.

Why Choose ASKA Solution?

ASKA Solution supports utility contractors, industrial facilities, and systems integrators throughout Saudi Arabia with dependable power component sourcing:

1. Technical Sourcing Verification: We assist engineering teams with verified manufacturer documentation, load curve analysis, and operational compatibility matching.
2. Industrial B2B Support: Delivering structured commercial quotations, schedule-based procurement, and direct technical coordination for projects from Riyadh to Dammam.
3. Authentic Component Supply: Focusing on verified manufacturing quality to keep essential telemetry, metering, and infrastructure hardware running reliably in the field.

FAQs

Common technical inquiries regarding the Ramway D 3V CR34615 12000mAh Lithium Battery cell:

1. What is the nominal capacity and working voltage of this D-size cell?
   The Ramway D 3V CR34615 12000mAh Lithium Battery delivers a nominal potential of 3.0V and carries a nominal capacity rating of 12000mAh (12.0Ah) under standard 10mA testing conditions at +25°C.
2. What distinguishes this spiral Li-MnO2 D-cell from standard bobbin cells?
   Spiral-wound cells utilize rolled electrode layers that provide a much larger reactive surface area. This allows continuous discharge currents up to 2000mA and pulse bursts up to 3000mA with minimal voltage delay, whereas standard bobbin cells are limited to lower continuous discharge rates.
3. What is the maximum operating temperature for this battery in Saudi field environments?
   This cell features an operating temperature range of -40°C to +85°C. This elevated thermal tolerance makes it well-suited for outdoor utility boxes and remote pipeline installations across Saudi Arabia.
4. Can lead wires be soldered directly to the battery container?
   No. Direct soldering creates intense localized heat that degrades the internal glass-to-metal hermetic seal. For custom circuit board attachment, choose factory-welded solder tags or secure terminal holders.
5. How should this CR34615 lithium battery be stored to protect its service life?
   To keep the self-discharge rate below 2% per year, store uninstalled cells in a clean, ventilated facility at or below 30°C away from direct sunlight and moisture.
