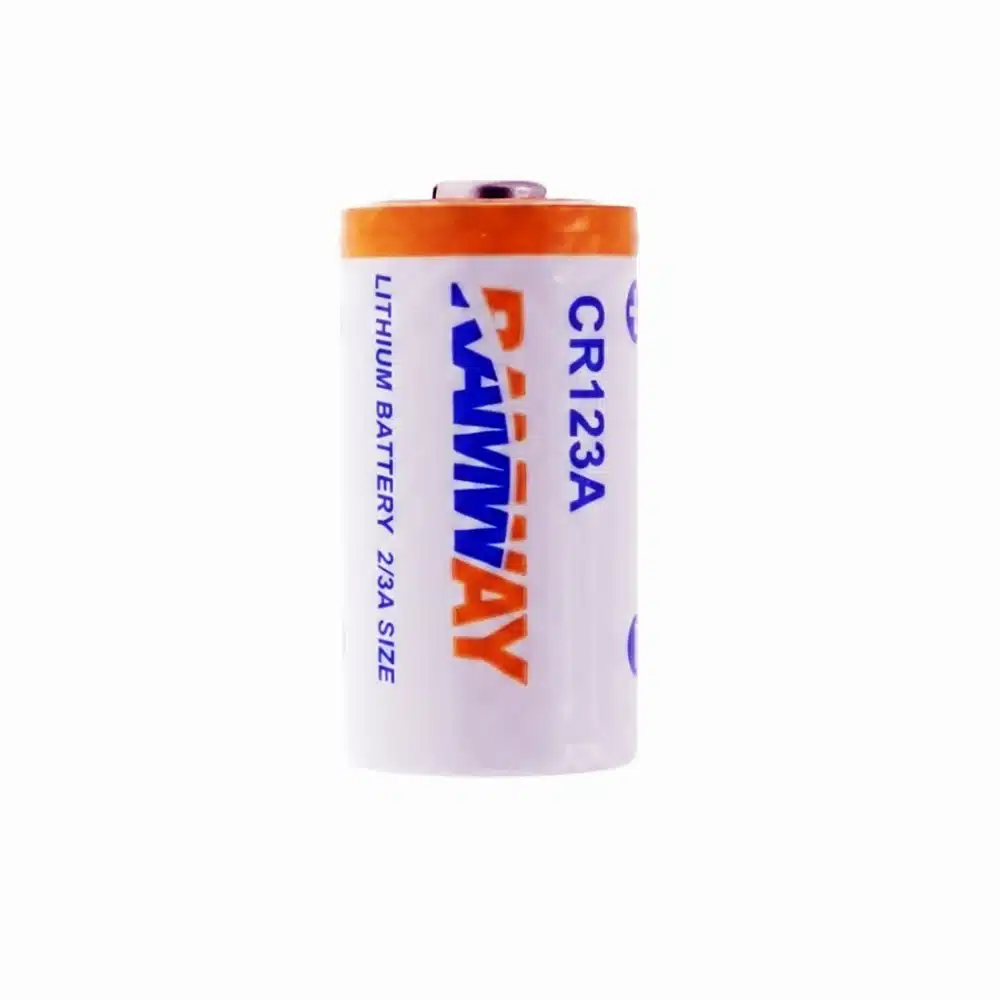

Ramway 2/3A 3V CR123A 1600mAh Lithium Battery

Ramway 2/3A 3V CR123A 1600mAh Lithium Battery modules provide superior high-drain performance for critical electronic equipment across Saudi Arabia. Engineered specifically for intensive industrial and security applications, this compact 2/3A size primary power source leverages advanced spiral-type chemistry to deliver an extended service life paired with a nominal 3.0V operating output. Whether powering modern security sensors, emergency transmitters, or automated metering networks, this high-drain lithium cell ensures your critical machinery maintains uninterrupted operation in demanding operational environments.

When continuous high-pulse delivery is essential for your systems, relying on a verified 3.0V 2/3A primary high-drain cell KSA facilities trust makes a significant operational difference. Constructed with a heavy-duty stainless steel casing and advanced semi-hermetic sealing technology, this cell thoroughly prevents electrolyte degradation and internal corrosion. Its non-flammable internal structure boasts an extraordinarily low self-discharge rate of less than 2% over a two-year storage period at 25℃, guaranteeing that standby systems like security transmitters and memory backups remain fully operational when needed.

Middle Eastern commercial and industrial sectors demand power components that can endure challenging ambient conditions without dropping output. Each Ramway CR123A lithium battery is manufactured in an ISO9001 certified facility and holds full UL, CE, and SGS safety recognitions. Capable of handling continuous discharge currents up to 1500mA and peak pulse currents up to 3000mA, this 17-gram cell operates smoothly across temperature extremes from -40℃ to +70℃.

Features:

Explore the key design features that make this spiral lithium cell ideal for high-pulse devices.

1. Stable Operating Output: Maintains a smooth 3.0V operating voltage across its discharge lifetime.
2. High Pulse Capability: Built with a spiral electrode design that supports pulse demands up to 3000mA.
3. Minimal Shelf Loss: Features a low self-discharge rate below 2% after two years of storage at room temperature.
4. Rugged Steel Housing: Protected by a tough stainless steel shell with semi-hermetic sealing against environmental wear.
5. Safety Approved: Built with non-flammable electrolyte chemistry and certified under UL, CE, SGS, and ISO9001.
6. Broad Operating Range: Performs consistently in thermal environments spanning from -40℃ up to +70℃.

Technical Specifications:

Review the electrical parameters and temperature thresholds for this 3V 2/3A power cell.

1. Manufacturer: Ramway
2. Model: CR123A (2/3A Size)
3. Nominal Capacity: 1600mAh / 1500mAh (At 1.0mA, +20℃, 2.0V cut off)
4. Rated Voltage: 3.0V
5. Max Continuous Discharge Current: 1500mA
6. Max Pulse Current Capability: 3000mA
7. Operating Temperature Range: -40℃ to +70℃
8. Storage Temperature: Max. 30℃ (recommended)
9. Typical Weight: Approximately 17g

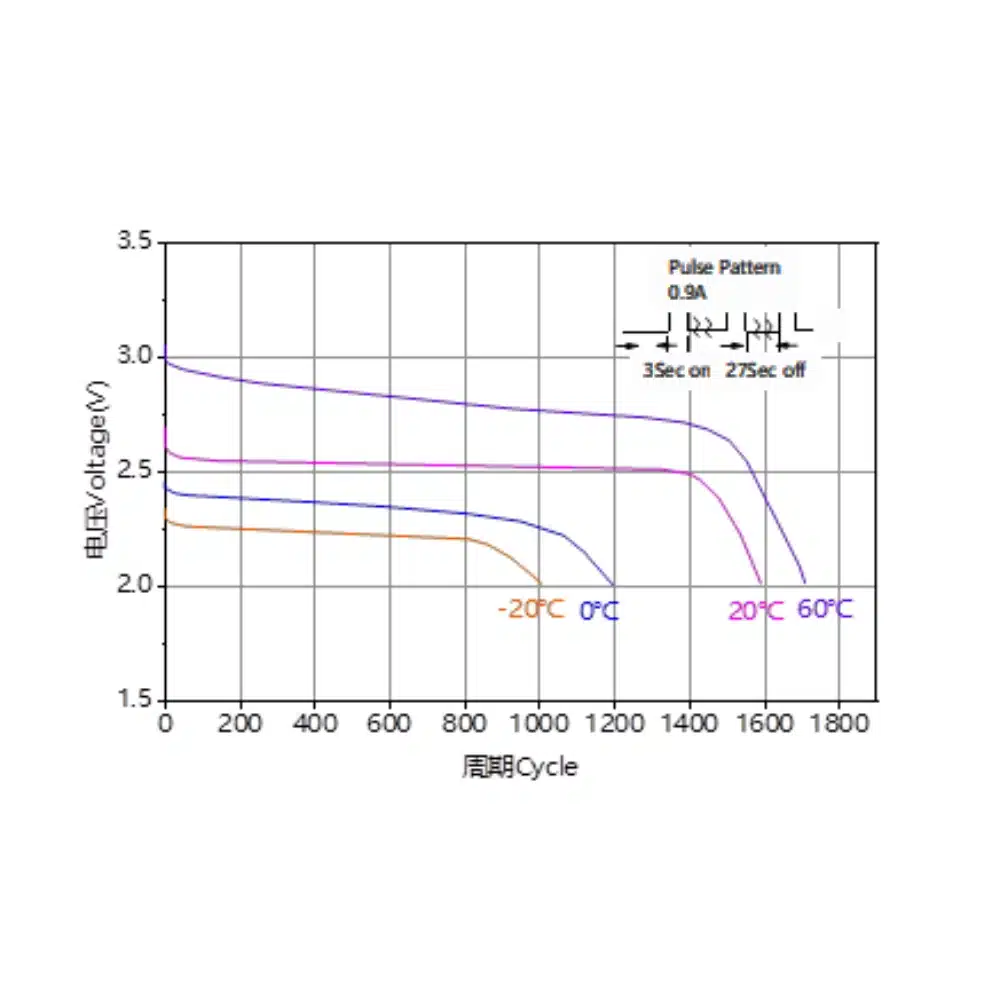

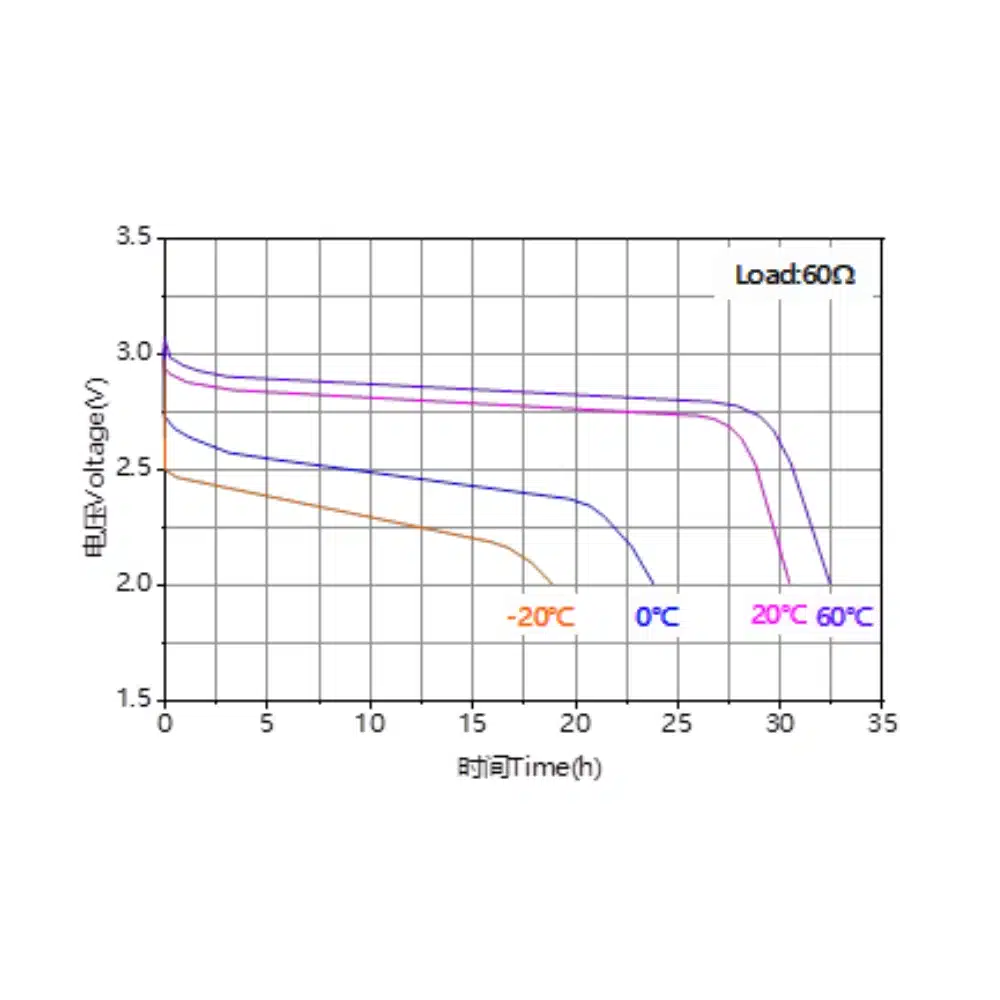

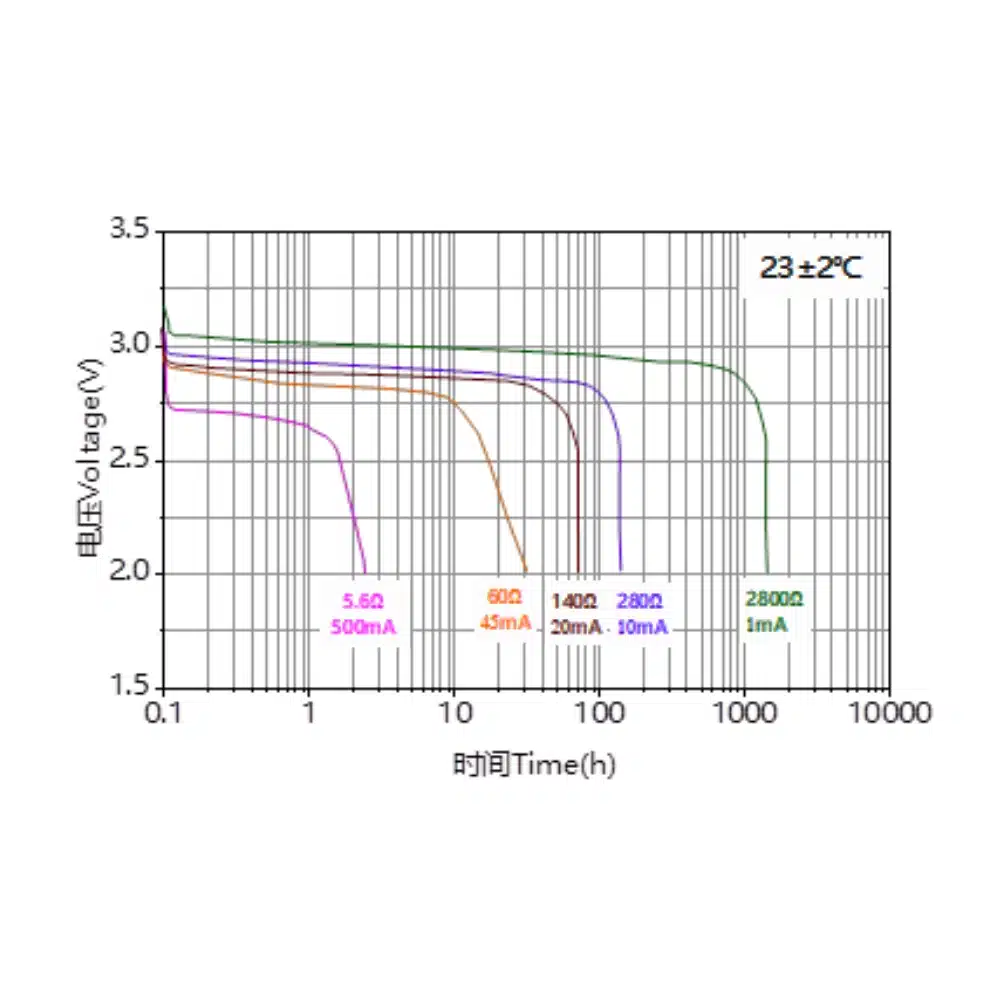

Data Table:

A quick reference table covering the core electrical metrics of the CR123A battery model.

Applications:

Discover the primary commercial and industrial applications where this high-drain cell excels.

1. Utility Metering: Powers high-frequency automatic meter reading (AMR) telemetry units across municipal networks.
2. Security & Alarms: Supplies dependable high-pulse energy to wireless security alarms, motion detectors, and sensors.
3. Tollgates & Automotive: Essential for electronic toll collection transponders and specialized vehicle tracking electronics.
4. Military & Emergency: Serves as a compact energy source for tactical equipment, remote beacons, and memory backup circuits.

How To Use:

Follow these installation steps to ensure safe and correct battery operation.

1. Device Preparation: Verify that the electronic device is completely turned off prior to installing the battery.
2. Polarity Check: Inspect the battery compartment to align positive (+) and negative (-) terminals correctly.
3. Insert Cell: Place the cell gently into the holder, aligning the marked positive (+) cap with the positive contact.
4. Close Compartment: Seal the battery enclosure firmly to safeguard against ambient moisture and dirt.
5. System Check: Power on the unit and verify that the 3.0V power reading appears on system diagnostics.

Warning:

Review these crucial safety warnings to prevent thermal hazards or chemical exposure.

1. Non-Rechargeable: This primary cell must never be recharged; attempting to charge it creates a severe fire hazard.
2. Thermal Exposure: Never subject the battery to temperatures above 100℃ or expose it to direct flames.
3. No Direct Welding: Do not solder wires directly onto the outer casing, as direct heat damages internal seals.
4. No Mechanical Abuse: Do not crush, puncture, cut open, or disassemble the protective steel canister.

Precautions:

Keep these handling procedures in mind to maintain optimal battery shelf life and safety.

1. Proper Storage: Store unused cells in a dry, ventilated area kept below 30℃ to ensure minimal capacity loss.
2. Temperature Limits: Sustained operation near extreme temperature limits (-40℃ or +70℃) may temporarily reduce available capacity.
3. Environmentally Safe Disposal: Dispose of spent lithium batteries according to local Saudi Arabian hazardous waste management guidelines.
4. Avoid Terminal Bridging: Never carry loose batteries with metallic items like keys or coins that could cause a short circuit.

Frequently Asked Questions (FAQs):

1. What is the capacity and voltage of the Ramway 2/3A 3V CR123A 1600mAh Lithium Battery?
   This battery provides a nominal voltage of 3.0V and a capacity rating of up to 1600mAh (1500mAh under standard test loads).
2. Is the Ramway CR123A lithium battery rechargeable?
   No, this is a primary non-rechargeable cell. Attempting to charge it can cause internal pressure buildup, leakage, or explosion.
3. What is the pulse current limit for this 3.0V 2/3A primary high-drain cell KSA devices use?
   This cell is designed to deliver peak pulse currents up to 3000mA and continuous discharge currents up to 1500mA.
4. Can I solder lead wires directly onto the battery casing?
   No, direct soldering on the battery wall creates excessive thermal stress that damages internal safety seals; use pre-tabbed versions instead.
5. What is the recommended storage temperature for long shelf life?
   For minimal self-discharge (less than 2% after two years), store the batteries in a cool, dry place at or below 30℃.
