Graphic Control 11.125” Pressure Chart Recording Paper MP-5000/24HR

Graphic Controls MP-5000 24HR chart

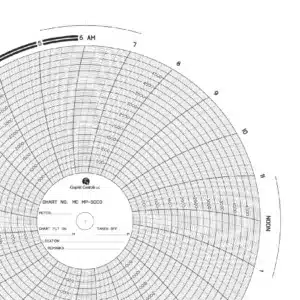

Graphic Controls MP-5000 24HR chart is the ultimate solution if you require precise and reliable data tracking in your facility. Engineered for continuous performance, this top-tier MP-5000 24 hour chart delivers clear and highly accurate readings for 24-hour cycles across Saudi Arabia and the wider KSA. Designed to seamlessly replace OEM supplies, this 11.125 pressure chart paper is ideal for heavy-duty gas, water, and oil applications. Whether you need reliable circular chart recorder paper or versatile temperature tracking, Graphic Controls ensures your monitoring systems never miss a beat. Rely on this premium graphic controls chart paper to safeguard your critical data and keep your operations fully compliant.

Features:

Ensure continuous, reliable data documentation with these premium chart features.

1. Exact Dimensions: This 11.125 pressure chart paper fits flawlessly inside American Meter and Barton recorders.

2. Extensive Range: Effortlessly tracks pressure levels from 0 up to 5000 psi uniformly along the arc.

3. High-Grade Material: Manufactured from robust, non-thermal paper designed to resist tearing and fading.

4. Extended Rotation: Captures a full 24-hour rotational cycle on a single sheet, minimizing replacements.

5. Bulk Packaging: Sold in boxes containing 100 sheets, keeping your operations fully stocked.

Technical Specifications:

Review the detailed specifications of this reliable recording medium.

1. Product Type: Circular Chart Paper

2. Manufacturer: Graphic Controls

3. Part Number: MP-5000-24HR

4. Chart Diameter: 11.125 inches (28.258 cm)

5. Rotation Time: 24 Hour

6. Measurement Range: 0 to 5000 Uniform

7. Paper Type: Non-Thermal

8. Product Type: Circular Chart Paper

Data Table:

A quick-reference guide to the essential specifications of the MP-5000/24HR paper.

Applications:

Discover the diverse industrial environments where this paper is essential.

1. Oil & Gas Pipelines: Perfect for monitoring high-pressure gas lines and maintaining regulatory compliance across KSA.

2. Water Treatment Facilities: Accurately logs water pressure metrics to ensure safe distribution.

3. Petrochemical Plants: Provides vital 24-hour documentation of pressure and temperature fluctuations.

4. Manufacturing Facilities: Essential for heavy industries in Saudi Arabia that rely on continuous pressure graph tracking.

How To Use:

Follow these standard operational steps for safe and effective chart installation.

1. Opening the Housing: Open your pressure graph recorder housing carefully and secure the previously recorded data.

2. Chart Placement: Place a fresh sheet of the graphic controls chart paper directly onto the central hub.

3. Time Alignment: Align the 24-hour time arc with the marking pen at the current starting time of your shift.

4. Securing the Chart: Lock the chart securely in place, verify the pen is making contact, and close the housing.

5. Data Retrieval: Retrieve the 5000 PSI recording chart only after the 24-hour cycle is fully completed to prevent overlapping lines.

Warning:

Pay attention to these critical alerts to prevent data loss.

1. Incorrect Range: Do not use this 0-5000 psi paper for recorders calibrated to different pressure limits, as it will cause inaccurate readings.

2. Moisture Damage: Keep the unused paper stored in a dry location, as high humidity can cause the non-thermal paper to warp.

3. Compatibility Issues: Charts with identical ranges but different diameters are not interchangeable; always verify your recorder size.

Precautions:

Keep these handling tips in mind for optimal long-term storage.

1. Storage Temperature: Store the boxes of 100 sheets in a cool, climate-controlled room to maintain paper integrity.

2. Handling: Handle the circular chart recorder paper by the edges to prevent skin oils from affecting the ink absorption.

3. Timely Replacement: Change the MP-5000 24 hour chart exactly every 24 hours to prevent overwriting and data confusion.

Frequently Asked Questions (FAQs):

1. What equipment does this chart recording paper fit?
   This premium paper is designed to fit American Meter and Barton industrial chart recorders perfectly.

2. How many sheets are included in one package?
   Each box of this graphic controls chart paper comes with 100 non-thermal circular sheets.

3. Is this paper suitable for high-pressure systems in Saudi Arabia?
   Yes, this 5000 PSI recording chart accurately logs pressure ranges from 0 up to 5000 psi for demanding KSA environments.

4. What is the recording duration for each chart?
   Each piece of this circular chart recorder paper tracks data accurately for a complete 24-hour rotation.

5. Can I use this for temperature tracking as well?
   While designed primarily as pressure chart paper, it can be used if your recorder’s temperature calibration matches the 0-5000 uniform arc
