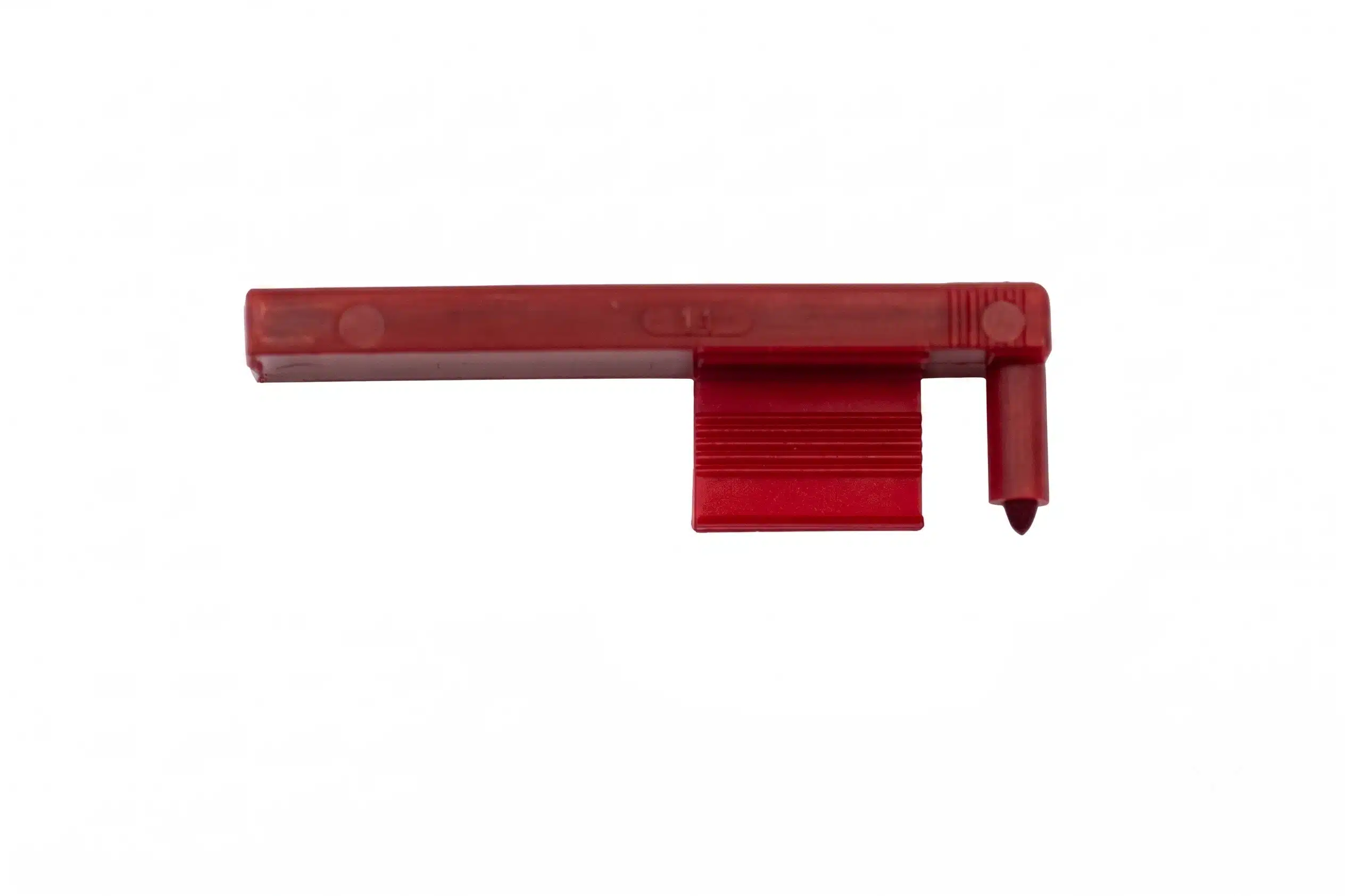

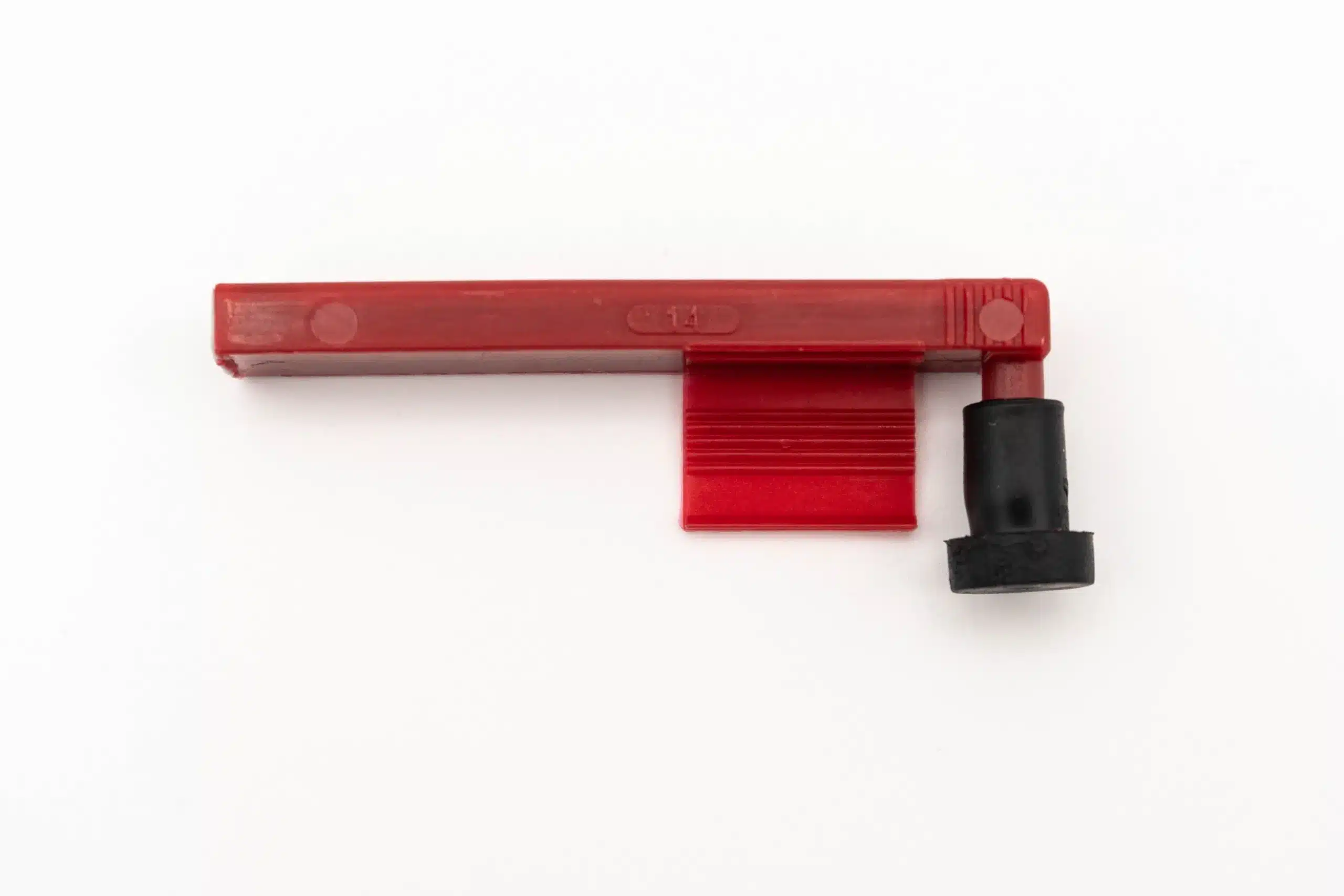

Universal Chart Recorder Pen MP 82-39-0202-06 2nd Red Marker Part # 10557347

Universal Chart Recorder Pen MP 82-39-0202-06 2nd Red Marker Part # 10557347

Chart recorder pens are the critical components you need to ensure flawless data logging across your industrial monitoring systems. If your facility in Saudi Arabia relies on continuous tracking of pressure, temperature, or flow rates, the Universal Chart Recorder Pen MP 82-39-0202-06 2nd Red Marker (Part # 10557347) delivers exactly what you require. These premium circular chart recorder pens offer smooth, consistent, and highly visible red ink that prevents data loss during critical 24-hour or 7-day recording cycles.

Finding a reliable replacement chart recorder pen can be challenging, but this versatile graphic controls chart recorder pen is built to match exact OEM specifications for a wide variety of equipment. Whether you are running manufacturing plants, petrochemical refineries, or water treatment facilities across KSA, you cannot afford to have skipping or bleeding ink ruin your documentation. Each graphic controls pen in this packet is designed to perform flawlessly under demanding industrial conditions.

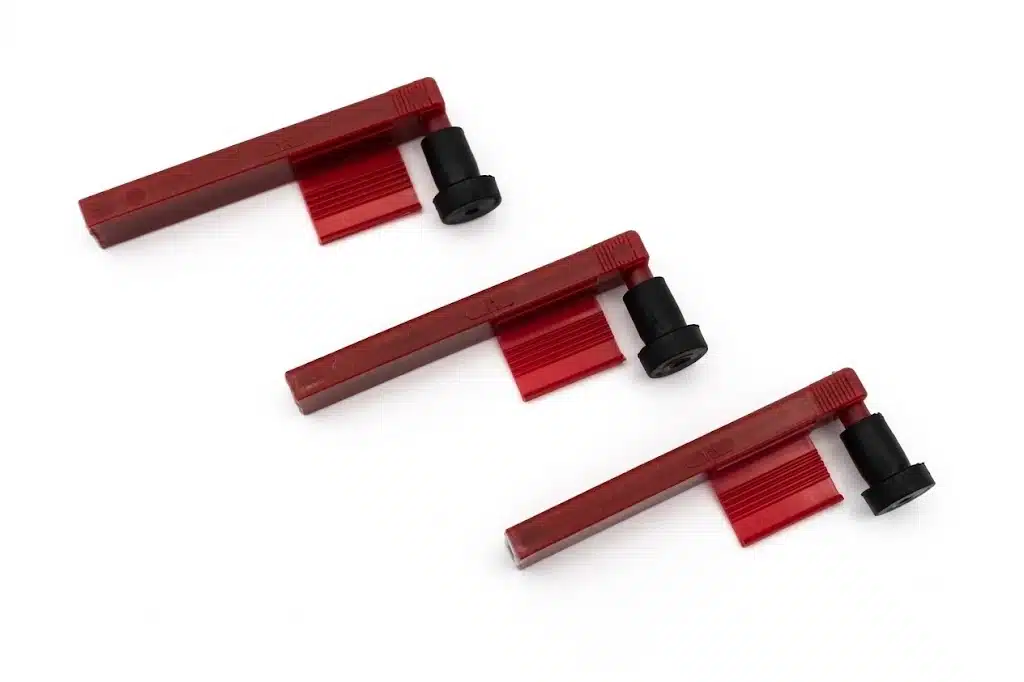

Packaged conveniently in sets of 6, these Red Recorder Pens guarantee that your operational inventory remains fully stocked. Upgrade your facility’s data collection accuracy with these exceptional marking products that are built to resist drying out, even in fluctuating temperatures. Keep your maintenance teams prepared and your compliance records perfectly legible.

Features:

Explore the advanced capabilities designed to keep your data logging accurate.

1. Vibrant Red Ink: Delivers highly visible, non-fading red lines that make reading complex data charts incredibly easy.

2. Universal Fit: Engineered to integrate seamlessly with various circular chart recorder models without needing special adapters.

3. Consistent Flow: Features a precision nib that prevents ink skipping, blotting, or bleeding on your recording paper.

4. Durable Design: Built to withstand the rigorous and fluctuating environmental conditions common in KSA industrial sites.

5. Long-Lasting Reservoir: Maximizes ink capacity to ensure continuous recording over extended tracking cycles.

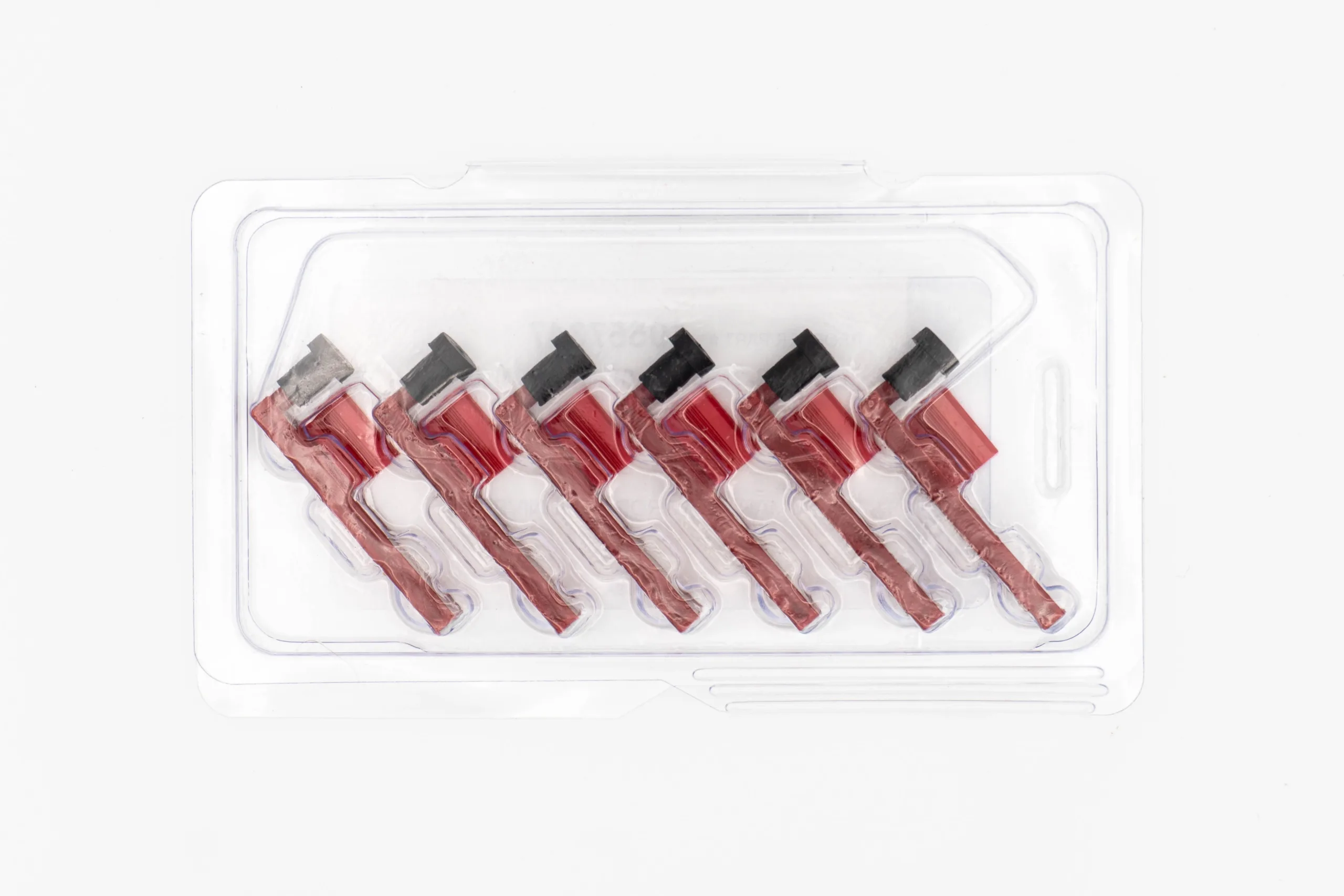

6. Convenient Packaging: Comes in a packet of 6 pens, providing excellent value and minimizing reorder frequency.

Technical Specifications:

Review the precise engineering details of these marking products.

1. Product Type: Universal Chart Recorder Pen

2. Manufacturer: Graphic Controls

3. Model Number: MP 82-39-0202-06

4. Part Number: 10557347

5. Ink Color: Red (2nd Marker)

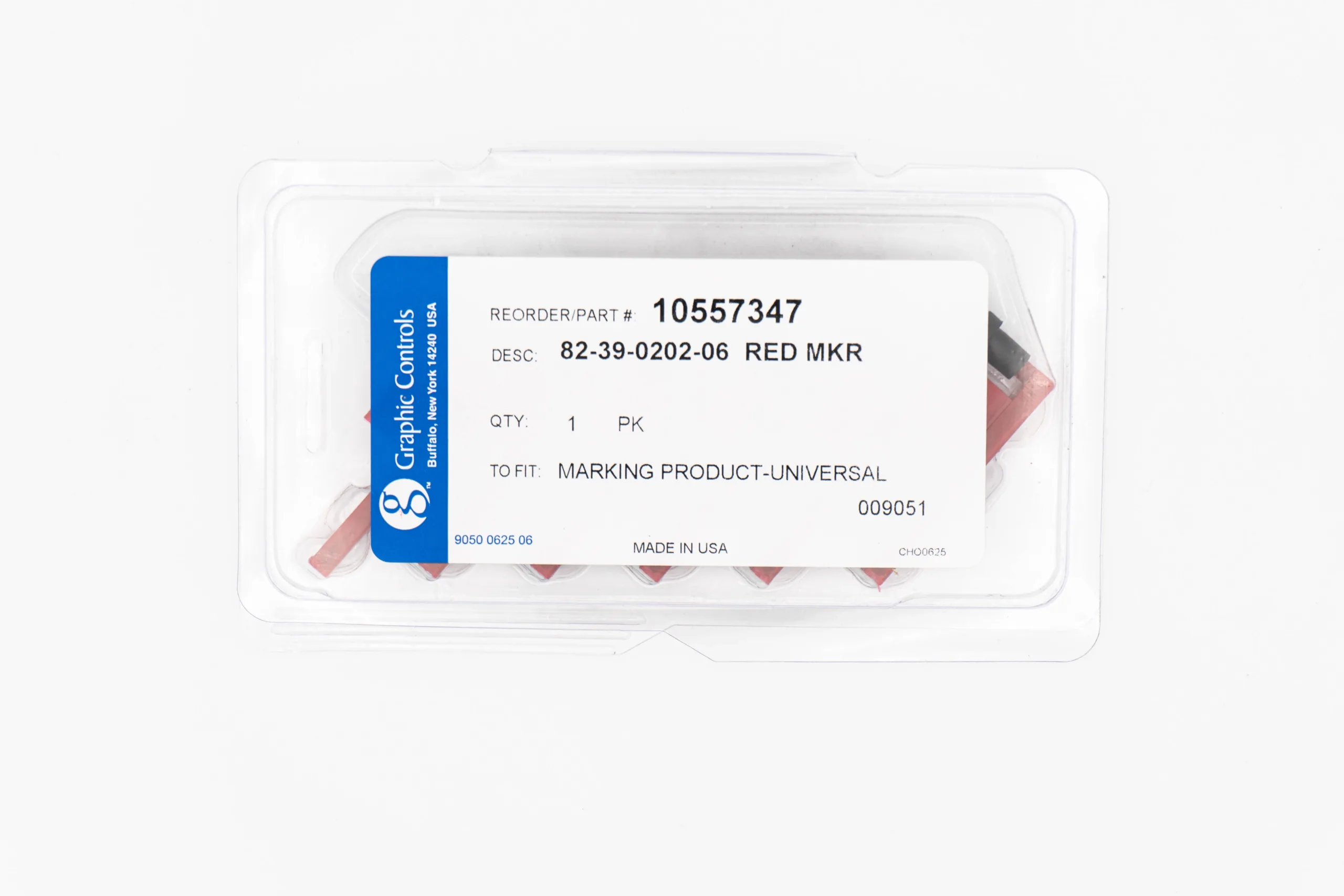

6. Packaging: 6 Pens per Packet

7. Application: Pressure, Temperature, and Flow recording

Data Table:

A quick-reference guide to the essential specifications of the MP 82-39-0202-06.

Applications:

Discover the diverse industrial environments where these markers excel.

1. Oil & Gas Refineries: Provides clear documentation of pressure and temperature trends in KSA petroleum processing.

2. Water Treatment: Ensures accurate, continuous logging of water flow and distribution metrics.

3. Food & Beverage: Maintains strict temperature compliance records required for food safety processing.

4. Manufacturing Plants: Ideal for general industrial use where reliable circular chart recording is mandated.

How To Use:

Follow these simple steps for quick installation and operation.

1. Open the glass or acrylic door of your circular chart recorder.

2. Carefully remove the depleted pen by sliding it off the recorder arm.

3. Take a new graphic controls pen from the 6-pack and remove the protective cap.

4. Slide the new pen securely onto the recording arm until it clicks into the correct position.

5. Gently rest the pen tip against the chart paper to verify ink flow.

6. Close the recorder housing and monitor the first few minutes to ensure a solid red line is being drawn.

Warning:

Pay attention to these critical alerts to prevent equipment damage.

• Delicate Arms: Do not force the pen onto the recording arm, as bending the arm will permanently distort your instrument’s accuracy.

• Cap Removal: Always remove the protective cap gently to avoid pulling the ink cartridge apart or damaging the precision nib.

• Ink Stains: Industrial red ink can permanently stain clothing and skin; handle with care during installation.

Precautions:

Keep these handling tips in mind for optimal long-term storage and use.

1. Storage: Keep the unused circular chart recorder pens in their original packaging in a cool, dry place to prevent the ink from drying out.

2. Cap Replacement: If a pen is removed from service temporarily, always replace the cap immediately.

3. Paper Match: Ensure you are using high-quality chart paper to prevent the pen tip from catching on rough fibers or bleeding through.

Frequently Asked Questions (FAQs):

1. What equipment are these chart recorder pens compatible with?
   They feature a universal design that fits a wide variety of standard industrial circular chart recorders.

2. How many pens come in a single order?
   Each order contains one packet, which includes 6 high-quality Red Recorder Pens.

3. Are these pens suitable for high-temperature environments in Saudi Arabia?
   Yes, the ink and casing are formulated to perform consistently in demanding and fluctuating industrial conditions across KSA.

4. What color ink does this specific model provide?
   This specific MP 82-39-0202-06 model (Part # 10557347) dispenses vibrant, highly visible red ink for the 2nd marker position.

5. How do I prevent the graphic controls pen from drying out?
   Always keep the protective cap on the pen until the exact moment you are ready to install it onto the recorder arm, and store extras in a cool, dry place.
