Graphic Control 11.125” Pressure Chart Recording Paper MP-10000/24HR

Graphic Controls MP-10000 24HR chart

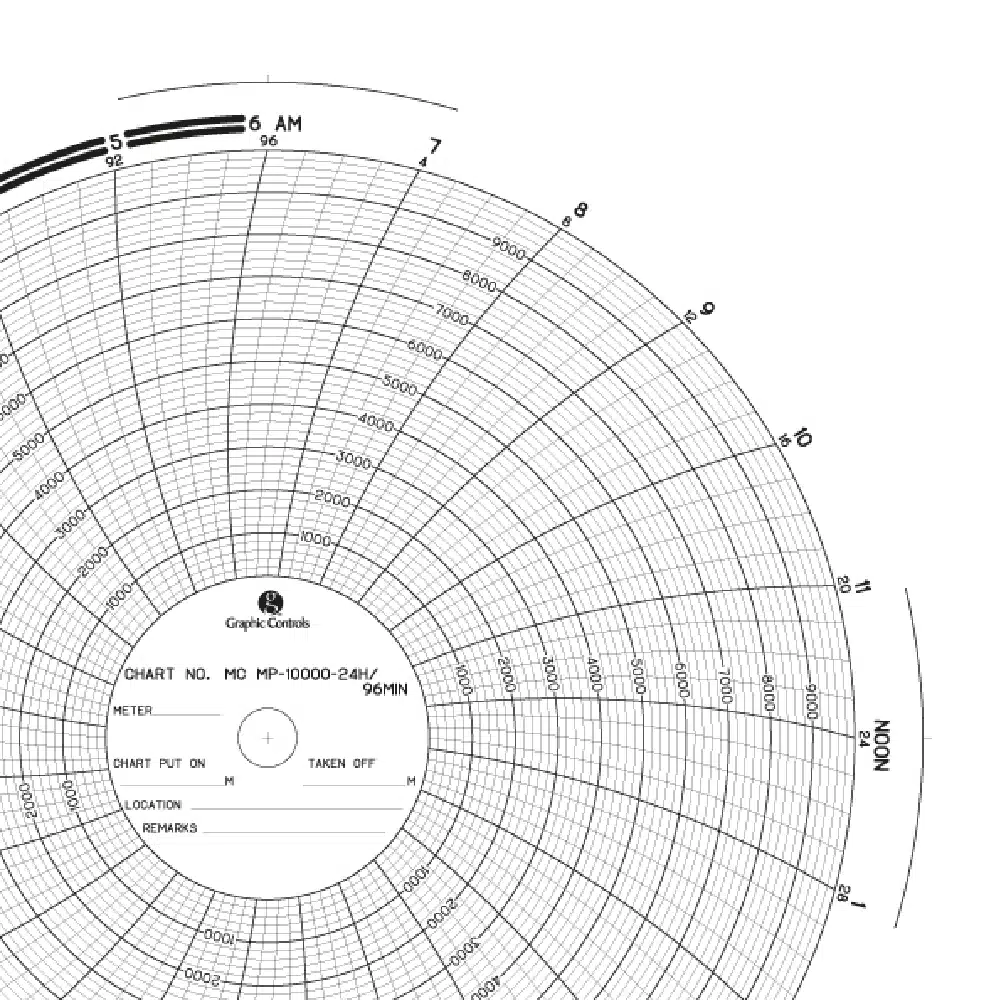

Graphic Controls MP-10000 24HR chart is the ultimate solution if you require precise and reliable high-pressure data tracking in your facility. Engineered for continuous performance, this top-tier MP-10000 24 hour chart delivers clear and highly accurate readings for 24-hour cycles across Saudi Arabia and the wider KSA. Designed to seamlessly replace OEM supplies, this 11.125 pressure chart paper is ideal for heavy-duty gas, water, and oil applications that operate under extreme stress. Whether you need reliable circular chart recorder paper for deep-well drilling or versatile temperature tracking, Graphic Controls ensures your monitoring systems never miss a beat.

Rely on this premium 10,000 PSI circular pressure chart to safeguard your critical data and keep your operations fully compliant with industry safety standards. Acting as the ultimate Replacement chart for 10K pressure recorder models, it integrates flawlessly into American Meter and Barton units without requiring any specialized adapters. Protect your pneumatic systems, maintain flawless operational logs, and avoid costly downtime by utilizing this high-grade graphic controls chart paper in your daily operations.

Features:

Ensure continuous, reliable data documentation with these premium high-pressure chart features.

1. Exact Dimensions: This 11.125 inch recording paper fits flawlessly inside standard American Meter and Barton recorders.

2. Extensive Range: Effortlessly tracks extreme pressure levels from 0 up to 10,000 psi uniformly along the arc.

3. High-Grade Material: Manufactured from robust, non-thermal paper designed to resist tearing, bleeding, and fading.

4. Extended Rotation: Captures a full 24-hour rotational cycle on a single sheet, minimizing the need for shift replacements.

5. Bulk Packaging: Sold in boxes containing 100 sheets, keeping your remote operations fully stocked for months.

Technical Specifications:

Review the detailed specifications of this reliable high-pressure recording medium.

1. Product Type: Circular Chart Paper

2. Manufacturer: Graphic Controls

3. Part Number: MP-10000-24HR

4. Chart Diameter: 11.125 inches (28.258 cm)

5. Rotation Time: 24 Hour

6. Measurement Range: 0 to 10,000 Uniform

7. Paper Type: Non-Thermal

Data Table:

A quick-reference guide to the essential specifications of the MP-10000/24HR paper.

Applications:

Discover the diverse industrial environments where this 10,000 PSI paper is essential.

1. Oil & Gas Pipelines: Perfect for monitoring high-pressure gas lines and maintaining regulatory compliance across KSA.

2. Deep-Well Drilling: Accurately logs extreme fluid pressure metrics to ensure safe extraction operations.

3. Petrochemical Plants: Provides vital 24-hour documentation of pressure and temperature fluctuations.

4. Heavy Manufacturing: Essential for industries in Saudi Arabia that rely on continuous high-pressure graph tracking.

How To Use:

Follow these standard operational steps for safe and effective chart installation.

1. Opening the Housing: Open your pressure graph recorder housing carefully and secure the previously recorded data.

2. Chart Placement: Place a fresh sheet of the 11.125 pressure chart paper directly onto the central hub.

3. Time Alignment: Align the 24-hour time arc with the marking pen at the current starting time of your shift.

4. Securing the Chart: Lock the chart securely in place, verify the pen is making contact, and close the protective housing.

5. Data Retrieval: Retrieve the 10000 PSI recording chart only after the 24-hour cycle is fully completed to prevent overlapping ink lines.

Warning:

Pay attention to these critical alerts to prevent data loss or inaccurate readings.

1. Incorrect Range: Do not use this 0-10,000 psi paper for recorders calibrated to different pressure limits, as it will cause completely inaccurate readings.

2. Moisture Damage: Keep the unused paper stored in a dry location, as high humidity can cause the non-thermal paper to warp and jam the pen.

3. Compatibility Issues: Charts with identical ranges but different diameters are not interchangeable; always verify your recorder requires an 11.125-inch fit.

Precautions:

Keep these handling tips in mind for optimal long-term storage and use.

• Storage Temperature: Store the boxes of 100 sheets in a cool, climate-controlled room to maintain paper integrity.

• Handling: Handle the circular chart recorder paper by the edges to prevent skin oils from affecting the ink absorption.

• Timely Replacement: Change the MP-10000 24 hour chart exactly every 24 hours to prevent overwriting and data confusion.

Frequently Asked Questions (FAQs):

1. What equipment does this chart recording paper fit?
   This premium 11.125-inch paper is explicitly designed to fit American Meter and Barton industrial chart recorders perfectly.

2. How many sheets are included in one package?
   Each box of this graphic controls chart paper comes with 100 high-quality, non-thermal circular sheets.

3. Is this paper suitable for extreme high-pressure systems in Saudi Arabia?
   Yes, this 10,000 PSI recording chart accurately logs immense pressure ranges from 0 up to 10,000 psi for the most demanding KSA environments.

4. What is the recording duration for each chart?
   Each piece of this circular chart recorder paper tracks data accurately for a complete 24-hour rotation.

5. Can this be used as a Replacement chart for 10K pressure recorder units?
   Absolutely, it is engineered to exact OEM specifications, making it the ideal drop-in replacement for standard 10K recorders.
