Rocker 410 Vacuum Pump Prote Overflow Protection For Filtration 220V

Rocker 410 Oil Free Vacuum Pump In Saudi Arabia

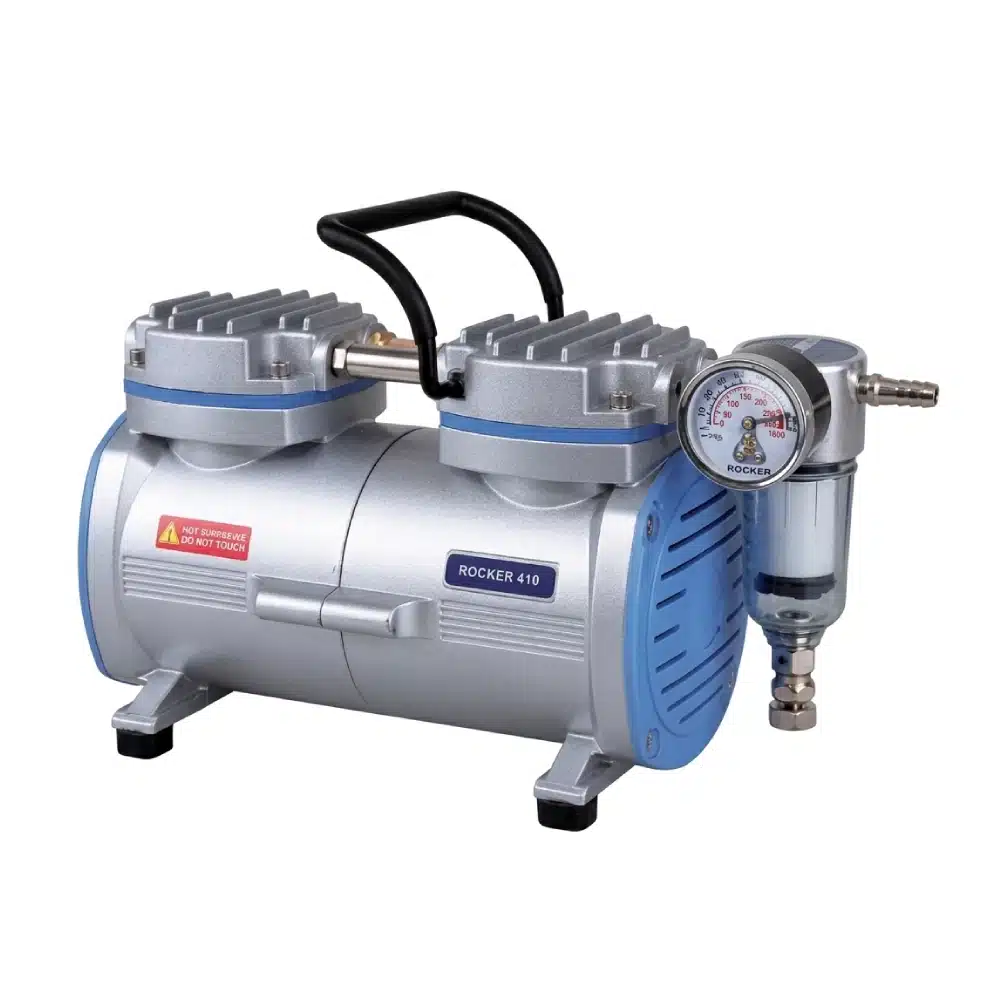

The rocker 410 vacuum pump is a piston-driven, oil-free laboratory suction unit engineered for demanding vacuum filtration, microbiological assays, and analytical testing across research, medical, and industrial facilities in Saudi Arabia. Operating on a standard 220V electrical supply, this compact benchtop pump delivers an exceptional ultimate vacuum of 25 mbar abs. paired with a free air displacement flow rate of 20 L/min at 50Hz (23 L/min at 60Hz). Engineered without lubricating oil, the rocker 410 vacuum pump guarantees clean operation, preventing hydrocarbon mist from contaminating sensitive analytical samples or indoor laboratory workspaces.

Key Operational Advantages

Engineered to deliver clean, quiet, and dependable suction for benchtop workflows, the Rocker 410 oil free laboratory vacuum pump incorporates several verified design characteristics:

1. Prote™ Overflow Protection Mechanism: Features an integrated buoy float valve within the intake assembly that automatically shuts off air intake if waste liquid is accidentally drawn toward the pump, completely protecting internal cylinders against liquid intrusion.
2. Maintenance-Free Piston Drive: Utilizes durable piston mechanics requiring zero oil changes, eliminating messy lubricant replenishment and ensuring an oil-free exhaust stream throughout the service life of the rocker 410 vacuum pump.
3. Integrated Pressure Regulation: Comes factory-equipped with a dampening dial vacuum gauge and precision needle regulator, allowing operators to monitor and fine-tune suction force for delicate membrane filters.
4. Air Inlet Filtration Cartridge: Built-in intake filter element captures airborne particulates and moisture droplets before they can enter the valve head, extending pump mechanical life.
5. Thermal Overload Protection: Outfitted with an automatic thermal protection switch that halts motor rotation if internal temperatures rise excessively and automatically resumes once the unit cools.
6. Ultra-Quiet Benchtop Profile: Operates at an unobtrusive sound pressure level of only 52 dB, providing comfortable long-duration operation inside busy university and testing laboratories.
7. International Safety Approvals: Certified under CE, CSA, IP30, and RoHS directives, and manufactured under ISO9001 certified quality standards.

Technical Specifications

Verified performance, mechanical, and electrical parameters for the rocker 410 vacuum pump derived directly from official manufacturer technical documentation:

Applications Across Saudi Laboratories

Combining high vacuum depth with compact portability, the Rocker 410 lab vacuum pump serves diverse testing and analytical processes:

1. Vacuum Filtration Manifolds: Provides sustained negative pressure for single and multi-branch filtration manifolds used in microbiological sample concentration, sterile liquid sterilization, and chemical clarification using the reliable rocker 410 vacuum pump.
2. Suspended Solid (SS) Water Testing: Delivers continuous suction for standard environmental water quality assessments conducted by municipal water agencies and environmental consultancies across Riyadh, Jeddah, and the Eastern Province.
3. Microbiological & Bioburden Testing: Used in pharmaceutical cleanrooms and food quality assurance labs for membrane filtration of microbial broth, water supplies, and sterile raw ingredients using the rocker 410 oil free vacuum pump.
4. Solid Phase Extraction (SPE) & Sample Prep: Supplies controlled, repeatable vacuum pull-down across SPE columns and vacuum manifolds to elute analytical compounds without volatile hydrocarbon contamination.
5. Air Sampling & Particulate Collection: Operates as a stable vacuum generator for capturing airborne aerosols, dust, and respirable particles onto analytical membrane filters in industrial testing zones like Jubail and Yanbu.

How to Use / Install the Rocker 410 Filtration Pump 220V

Adhere to standard laboratory setup procedures to ensure safe, stable operation and maintain rated suction performance for your rocker 410 vacuum pump:

1. Bench Placement: Place the pump on a clean, flat, vibration-dampened laboratory bench with adequate ventilation space around the rear motor vents.
2. Electrical Connection: Verify that the local mains power matches the Rocker 410 filtration pump 220V rating, and connect the grounded power cable securely to the laboratory socket.
3. Connect Vacuum Tubing: Firmly slip an ID8 (8 mm inner diameter) reinforced silicone or PVC vacuum hose over the barbed inlet connector on the moisture trap assembly.
4. Attach Laboratory Apparatus: Connect the opposite end of the vacuum tubing to your filtration flask, vacuum manifold, or extraction chamber. Ensure collection glassware is rated for negative pressure.
5. Power On & Adjust Vacuum: Flip the power switch to the ON position. Rotate the integrated vacuum control knob clockwise or counterclockwise while observing the analog dial gauge to achieve the target vacuum level on the rocker 410 vacuum pump.
6. System Shutdown: Once filtration is complete, relieve internal vacuum pressure using the regulation valve before powering down the motor, preventing residual suction from pulling liquid backwards.

Precautions & Maintenance Protocols

Because the rocker vacuum pump 410 is an essential laboratory instrument, observing these operational and safety rules will prolong service life:

1. Aqueous & Organic Mist Limits: The pump is engineered for non-corrosive air and moisture filtration. Avoid aspirating strong acid vapors, corrosive halogens, or highly flammable organic solvents directly through the pump head.
2. Empty Moisture Trap Regularly: Although the Prote™ overflow float prevents bulk fluid ingress, the intake moisture trap on the rocker 410 vacuum pump should be emptied promptly if condensate accumulates during extended filtration runs.
3. Clean or Replace Inlet Cartridge: Periodically inspect the intake filter cartridge located behind the vacuum regulator. If the filter media becomes discolored or airflow is restricted, replace the cartridge to protect the piston chamber.
4. Do Not Block Exhaust Ports: Never obstruct or seal the pump exhaust openings. Unrestricted airflow is vital for internal cooling and motor efficiency.
5. Allow Thermal Recovery: If the motor cuts out due to thermal overload, switch the unit OFF and allow it to cool for 20 to 30 minutes before re-energizing. Check that ambient laboratory ventilation is sufficient.
6. Handling Glassware: Always use vacuum-rated filtering flasks and desiccators equipped with implosion safety guards when operating near the pump’s 25 mbar ultimate vacuum limit.

Why Choose ASKA Solution?

ASKA Solution supports laboratories, industrial facilities, and testing institutions across Saudi Arabia with dependable laboratory equipment sourcing for the rocker 410 vacuum pump:

1. Verified Technical Specifications: We assist procurement officers and lab managers with original manufacturer documentation, electrical compatibility verification, and accessory selection.
2. Structured B2B Procurement: Providing official commercial quotations, schedule-aligned supply, and dedicated technical coordination for institutional labs from Riyadh to Dammam.
3. Authentic Scientific Hardware: Focusing exclusively on verified manufacturing quality to keep critical testing and quality control benches operating reliably with the rocker 410 vacuum pump.

FAQs

Common technical inquiries regarding the vacuum pump rocker 410 and laboratory filtration operations:

1. What makes the rocker 410 vacuum pump ideal for cleanroom and microbiological applications?
   The pump features a 100% oil-free piston mechanism. Because it requires zero oil lubrication, it generates zero oil mist exhaust, eliminating the risk of hydrocarbon contamination on culture media, sterile membrane filters, and sensitive analytical samples.
2. How does the Prote™ overflow protection feature work on the rocker 410 vacuum pump?
   The intake trap contains an engineered buoy float. If a filtration receiver overflows or liquid is accidentally drawn toward the pump, the float immediately rises with the fluid level and blocks the suction port, halting suction before liquid can enter the valve head and destroy the piston cylinder.
3. What is the maximum vacuum and airflow delivered by the 220V model?
   The rocker 410 vacuum pump generates a deep ultimate vacuum of 25 mbar abs. (approx. -735 mmHg) and a free air displacement of 20 L/min at 50Hz (23 L/min at 60Hz), making it suitable for both slow analytical extraction and rapid aqueous filtration.
4. Can the vacuum level be adjusted for delicate membrane filters?
   Yes. The pump includes an integrated analog vacuum gauge and an adjustable needle regulator knob. Users can finely tune the suction level to prevent filter membrane rupture during delicate cell culture or protein filtration procedures.
5. What size vacuum tubing is required for this pump?
   The intake barb fitting on the rocker 410 vacuum pump is sized for ID8 vacuum tubing, which corresponds to flexible tubing with an internal diameter of 8 mm (5/16 inch).
