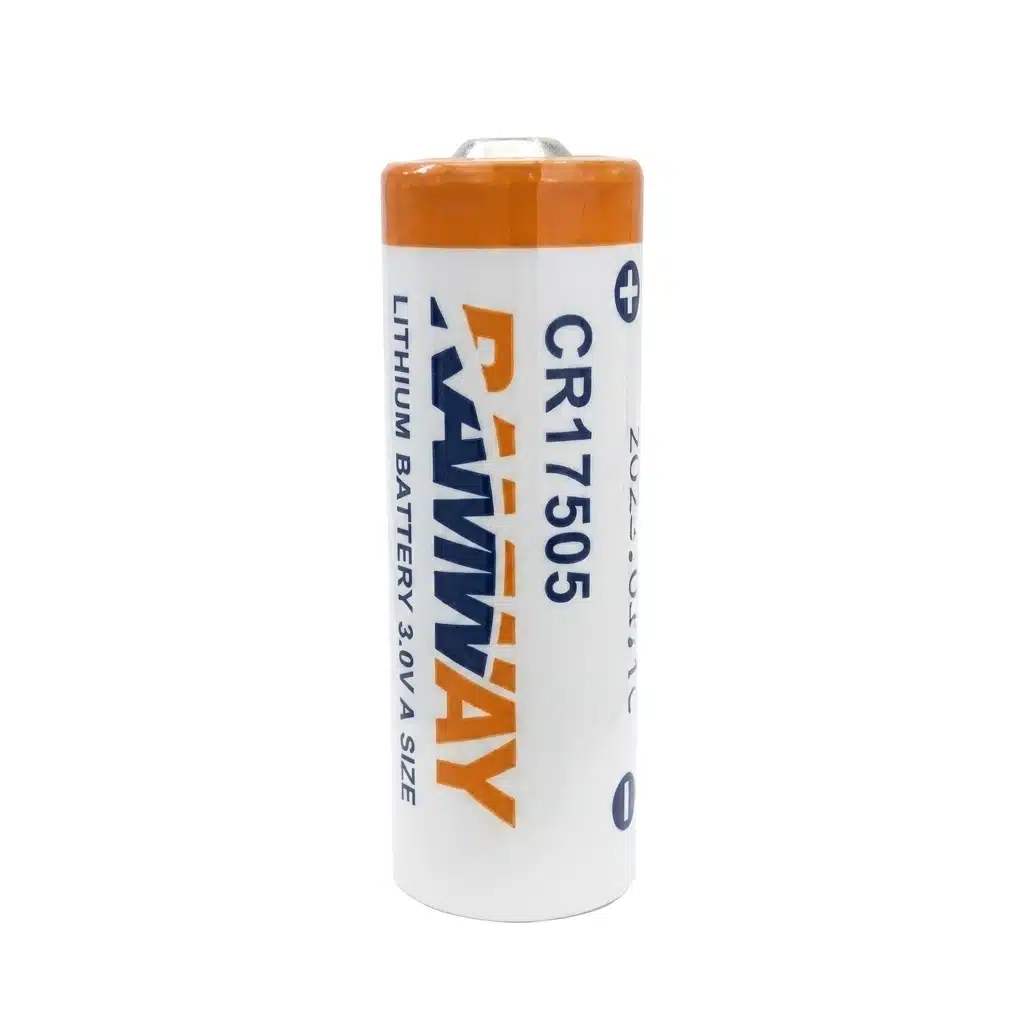

Ramway A 3V CR17505 2500mAh Lithium Battery

Ramway A 3V CR17505 2500mAh Lithium Battery units are the ultimate high-drain power solution if you require dependable energy for critical electronic devices across Saudi Arabia. Designed specifically for high-stakes industrial and commercial applications, this premium A-size power cell utilizes advanced Lithium Manganese Dioxide (LiMnO2) technology to deliver a stable, continuous 3V output alongside a robust 2500mAh (2.5Ah) nominal capacity. Whether you are outfitting demanding automatic meter reading systems or deploying remote military electronics in the harsh KSA climate, this battery ensures your equipment remains operational without frequent, costly replacements.

When extreme durability and high-pulse capability are non-negotiable, this specialized LiMnO2 CR17505 industrial battery Saudi Arabia stands out from standard commercial cells. It is engineered with a rugged stainless steel container and hermetic sealing, strictly protecting the internal non-flammable electrolyte from harsh external elements. This high-grade construction boasts an incredibly low self-discharge rate of less than 2% per year (at 25℃), guaranteeing that your standby devices, such as memory backups and tollgate systems, are always ready to perform when you need them most.

We understand the specific high-drain demands of Middle Eastern industrial sectors, which is why we offer this highly sought-after Ramway CR17505 lithium battery supply directly to your facility. Fully CE and SGS recognized, and manufactured in an ISO9001 approved facility, this spiral-type lithium cell easily handles high continuous currents up to 1500mA and pulse currents up to 3000mA. Keep your heavy-duty alarms, security devices, and professional electronics running flawlessly in extreme temperatures ranging from -40℃ to +85℃.

Features:

Explore the advanced manufacturing features that make this spiral-type power source ideal for high-drain devices.

1. Stable Voltage: Delivers a high and incredibly stable operating voltage of 3.0V throughout the majority of its lifespan.
2. High-Drain Capability: Spiral-type construction allows for high continuous (1500mA) and pulse (3000mA) currents.
3. Ultra-Low Discharge: Boasts a remarkably low self-discharge rate (less than 2% after 1-year storage at 25℃).
4. Rugged Construction: Housed in a durable stainless steel container with hermetic sealing to prevent leaks.
5. Safety Certified: Built with a non-flammable electrolyte and is fully CE and SGS recognized (ISO9001 approved).
6. Extreme Temperature Tolerance: Operates flawlessly in severe conditions ranging from -40℃ to +85℃.

Technical Specifications:

Review the specific electrical characteristics and temperature limits of this 3V A-size cell.

1. Manufacturer: Ramway
2. Model: CR17505 (A Size)
3. Nominal Capacity: 2.5Ah / 2500mAh (At 5.0mA, +25℃, 2.0V cut off)
4. Rated Voltage: 3.0V
5. Max Recommended Continuous Current: 1500mA
6. Max Pulse Current Capability: 3000mA
7. Operating Temperature Range: -40℃ to +85℃
8. Storage Temperature: Max. 30℃ (recommended)
9. Typical Weight: Approximately 29g

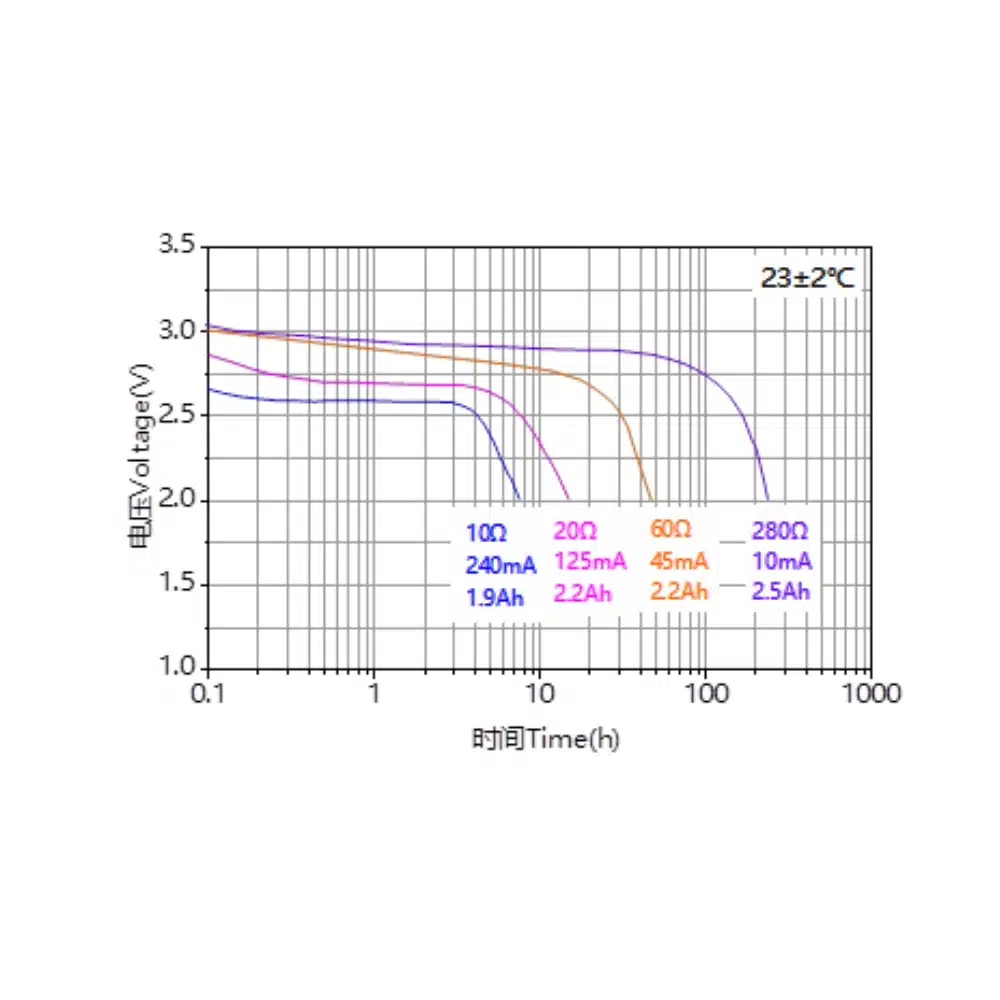

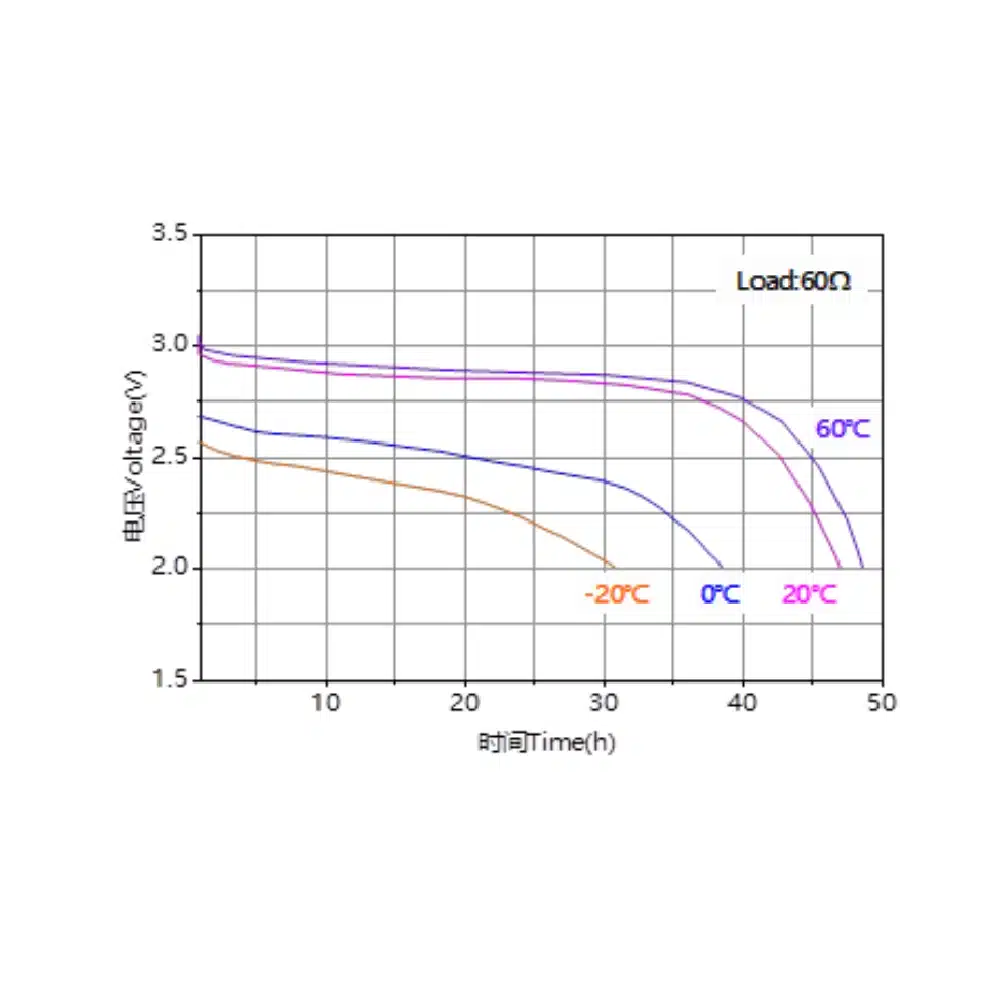

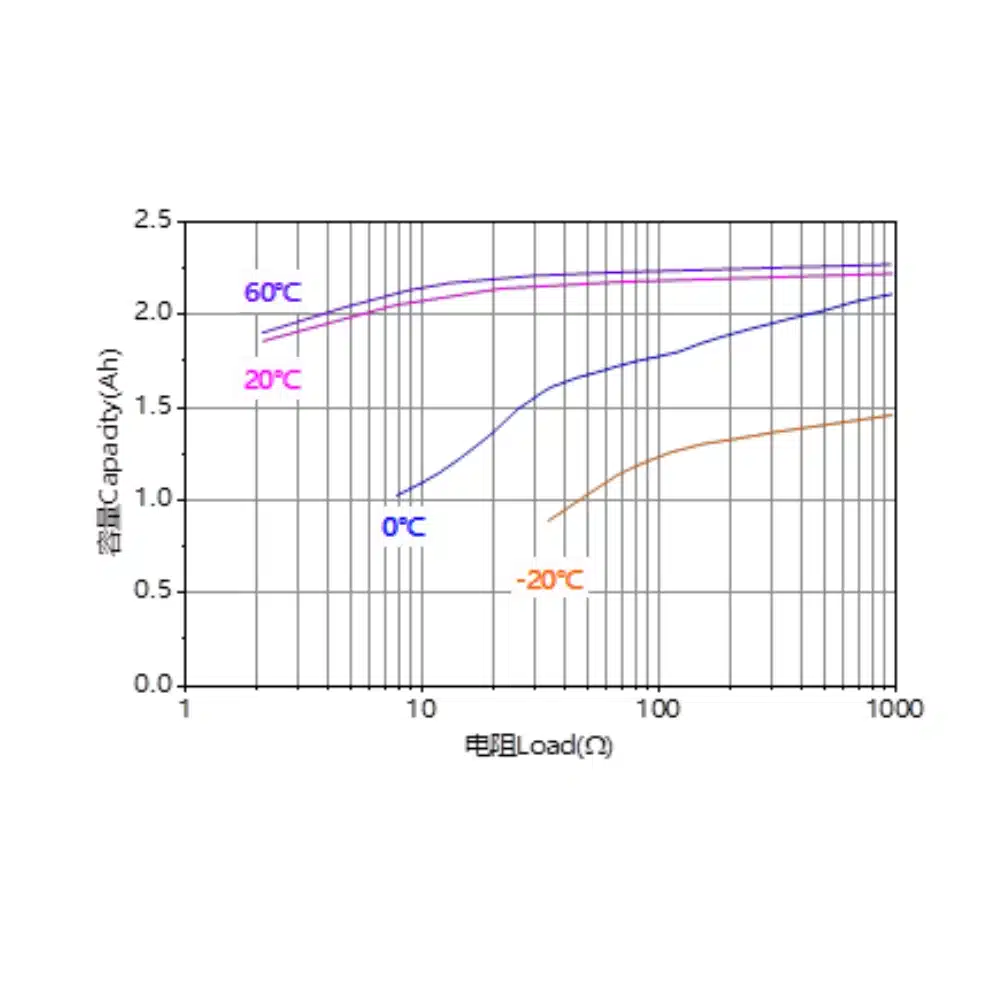

Data Table:

A quick-reference guide to the essential electrical specifications of the CR17505 model.

Applications:

Discover the strict industrial and commercial environments where this power cell excels.

1. Utility Metering: The standard choice for automatic meter reading systems tracking water, gas, and electricity in KSA.
2. Security Systems: Provides reliable, high-drain power for wireless alarms and high-stakes security devices.
3. Automotive & Tollgates: Essential for automotive electronics and automated tollgate transponder systems.
4. Professional Electronics: Used extensively in memory back-up systems and specialized military electronics requiring durable sealing.

How To Use:

Follow these standard operational steps for safe and effective battery installation.

1. Device Preparation: Ensure the electronic device is completely powered off before attempting battery installation.
2. Polarity Verification: Check the internal battery compartment to clearly identify the correct positive (+) and negative (-) terminals.
3. Insert Battery: Carefully insert the battery, aligning the printed (+) symbol on the casing with the corresponding device contact.
4. Secure Compartment: Close the battery housing securely to prevent moisture or dust from entering the seal area.
5. Power On: Turn the device on and verify that the 3V power supply is registering correctly on your equipment’s diagnostic screen.

Warning:

Pay attention to these critical safety alerts to prevent fire, explosion, or severe chemical burns.

1. Do Not Recharge: This is a primary lithium cell; attempting to recharge it presents a severe fire and explosion hazard.
2. Heat Restrictions: Never expose the battery to extreme heat above 100℃, and never attempt to incinerate it.
3. No Direct Soldering: Do not solder wires directly to the casing of the cell, as localized heat will destroy the internal components.
4. Physical Damage: Do not crush, puncture, disassemble, or forcefully deform the stainless steel container.

Precautions:

Keep these handling and maintenance guidelines in mind for long-term operational safety and battery life.

1. Storage Conditions: Store unused batteries in a cool, dry, and well-ventilated area, preferably below 30℃ to maintain the <2% discharge rate.
2. Limit Operations: Operating the battery closely to its limit temperatures (-40℃ or +85℃) may lead to reduced capacity and a low voltage plateau reading.
3. Proper Disposal: Dispose of depleted lithium batteries strictly according to local KSA environmental and hazardous waste regulations.
4. Short Circuit Prevention: Never carry loose batteries in a pocket or toolbox with metal objects like coins or keys that could bridge the terminals.

Frequently Asked Questions (FAQs)

1. What is the voltage and capacity of the Ramway A 3V CR17505 2500mAh Lithium Battery?
   This specific battery delivers a highly stable rated voltage of 3.0V and a nominal capacity of 2500mAh (2.5Ah).
2. Can I recharge this LiMnO2 CR17505 battery?
   No. This is a primary (non-rechargeable) battery. Attempting to recharge it is extremely dangerous and can cause an explosion or fire.
3. What is the maximum operating temperature for this battery in Saudi Arabia?
   It is designed to operate safely in extreme environmental conditions, handling temperatures from -40℃ up to a maximum of +85℃.
4. Is it safe to solder directly to this 3V lithium battery?
   No, you must never solder directly to the cell casing. Direct heat will damage the internal structure and poses a severe safety hazard.
5. What is the recommended storage temperature to maintain its lifespan?
   For optimal longevity and to maintain the ultra-low self-discharge rate, it is recommended to store the battery in an environment at or below 30℃.
