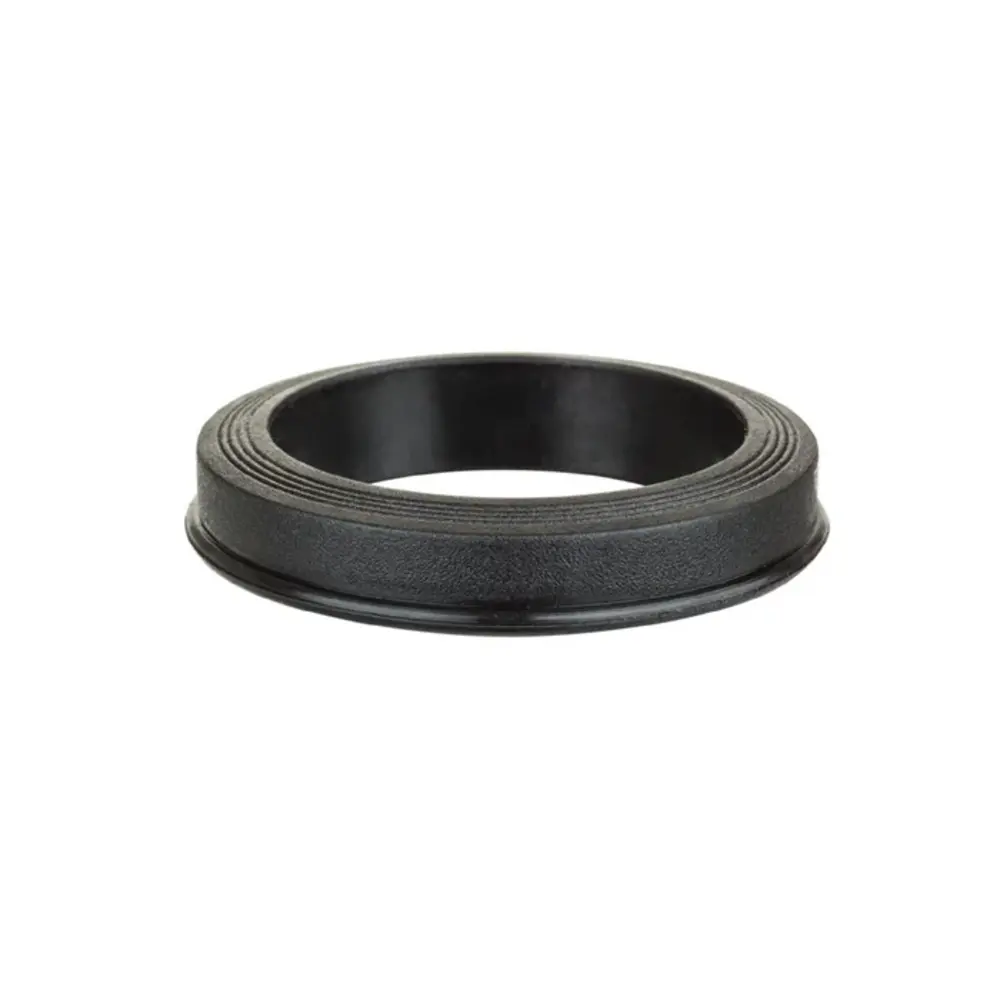

ACT 3″ FIG.602/1002/1502 Hammer Union Lip Seal Sour Service USA

ACT 3 FIG.602/1002/1502 Hammer Union Lip Seal Sour Service USA

We are a leading industrial equipment supplier in Riyadh and Dammam. Our team provides robust components for demanding oilfields. This American Completion Tools Hammer Union Seal is the ultimate choice. Consequently, the ACT 3 FIG.602/1002/1502 Hammer Union Lip Seal Sour Service USA ensures complete operational safety. Furthermore, professionals rely on our fast local delivery across Saudi Arabia.

Features

This ACT 3 FIG.602/1002/1502 Hammer Union Lip Seal Sour Service USA offers tangible benefits for Saudi Arabia operations.

1. High Performance: The American Completion Tools Hammer Union Seal handles intense drilling environments.
2. Active Design: The resilient lip-type design enhances the primary metal-to-metal piping connection.
3. NACE Compliance: It fully complies with international safety standards for hazardous gas.
4. Turbulence Control: This robust feature protects system integrity by reducing dangerous turbulence.
5. Extreme Pressure: The compound withstands dynamic conditions without losing any structural integrity.

Technical Specifications

Every single component meets rigorous local and international oilfield quality standards.

1. Compatibility List: It perfectly matches figure numbers 602, 1002, and 1502 systems.
2. Service Type: Engineered specifically for dangerous sour gas and H2S chemical exposure.
3. Pressure Limits: Suitable for unions rated strictly between ten and fifteen thousand psi.
4. Thermal Range: Operates safely from minus thirty to plus two hundred fifty degrees.
5. Material Code: Complies with standard NACE and ISO material fabrication protocols efficiently.

Data Table

Review the exact dimensional and material properties below.

Applications

Engineers across Jeddah and Riyadh specify this hardware for critical tasks.

1. Well Testing: This Replacement Hammer Union Seal for 602/1002/1502 secures analytical well testing.
2. Frac Operations: Heavy-duty fracturing setups maintain pressure during intense underground pumping sequences.
3. Choke Lines: High-velocity choke and kill lines remain completely sealed during emergencies.
4. Cementing Tasks: Workers prevent dangerous leaks during acidic well cementing process tasks.
5. Drilling Systems: High-pressure drilling requires a dependable Hammer Seal Union constantly.

How To Use

Follow these straightforward steps to achieve a perfect high-pressure seal.

1. Inspection: Check the metal union halves for any debris or deep scratches.
2. Cleaning: Wipe the seating surfaces carefully using approved industrial chemical solvents.
3. Insertion: Press the elastomer firmly into the designated groove slot evenly.
4. Alignment: Bring the two metal pipe segments together without pinching rubber.
5. Tightening: Strike the securing lugs with a designated heavy hammer firmly.

Warning

Always observe safety protocols when handling pressurized oilfield piping systems.

1. Pressure Limits: Exceeding specified pressure ratings can violently rupture the metal connections.
2. Toxic Gas: Sour service means lethal H2S gas might be present locally.
3. Proper Tools: Never substitute the required heavy hammer for unauthorized striking tools.
4. Chemical Hazards: Wear appropriate PPE according to standard OSHA oil and gas safety guidelines.
5. Pinch Points: Keep hands clear of the heavy metal lugs during tightening.

Precautions

Store and handle these industrial consumables correctly to preserve their integrity.

1. Storage Conditions: Keep the elastomers in a cool, dry, and dark environment.
2. UV Exposure: Direct sunlight can degrade the specialized synthetic rubber compounds quickly.
3. Ozone Damage: Keep components away from active electrical motors to prevent cracking.
4. Visual Inspection: Discard any items showing visible tears, dents, or surface degradation.
5. Single Use: Replace the sealing element every time you break the connection.

Frequently Asked Questions (FAQs)

1. What does this Hammer Union Seal do?

It provides a secure, leak-proof barrier between two pressurized pipes.

2. Is this a Replacement Hammer Union Seal for 602/1002/1502 exactly?

Yes. It perfectly fits those standard three-inch industrial pipe fittings.

3. Can I use this Hammer Seal Union safely?

Yes. It is fully rated for lethal sour gas environments.

4. How much pressure can this specific component handle safely?

It securely handles dynamic pressures up to fifteen thousand psi.

5. Do you ship these oilfield supplies to Jubail?

Yes. We maintain extensive inventory for rapid deployment across Saudi Arabia.

Still have questions or need a custom solution? Contact our team today — we’re ready to help.
